Large area work light POWERTUBE II M 230V AC dimmable

Product overview

The SONLUX POWERTUBE II M is a mobile large-area LED luminaire made for fast, reliable illumination of demanding work zones. Its tubular format creates a wide 360° light field, so the scene stays evenly lit when people move around the setup. Instead of fighting hard shadows from a single direction, you get a calmer, more uniform environment that supports safer movement, cleaner cable work, and quicker inspections.

Why 360° lighting changes the workflow

Traditional work lights often aim like spotlights. They brighten one direction and leave deep shadows behind objects. POWERTUBE II M works differently. Light surrounds equipment, pallets, vehicles, and people. Shadows become softer and less distracting. A single luminaire can cover a surprisingly large area, which often reduces the number of fixtures needed on site.

Comfortable light for long shifts

The opal protective tube diffuses the LED output into a soft, glare-reduced illumination. This helps when crews work close to reflective surfaces, wet asphalt, metal structures, or glossy indoor floors. The colour temperature is 5000 K for a clear “daylight” character. With CRI 80, colours and markings remain readable, which matters for safety labels, cable identification, and tool recognition.

Output, efficiency, and real-world performance

This M version delivers a rated luminous flux of 24,000 lm with a system power of 187 W. With a system efficiency of 128 lm/W, it offers a strong output-to-power ratio for temporary installations. The beam distribution is down 180° and up 180°, which supports both floor tasks and elevated objects without forcing you to add secondary lights.

Control that fits temporary installations

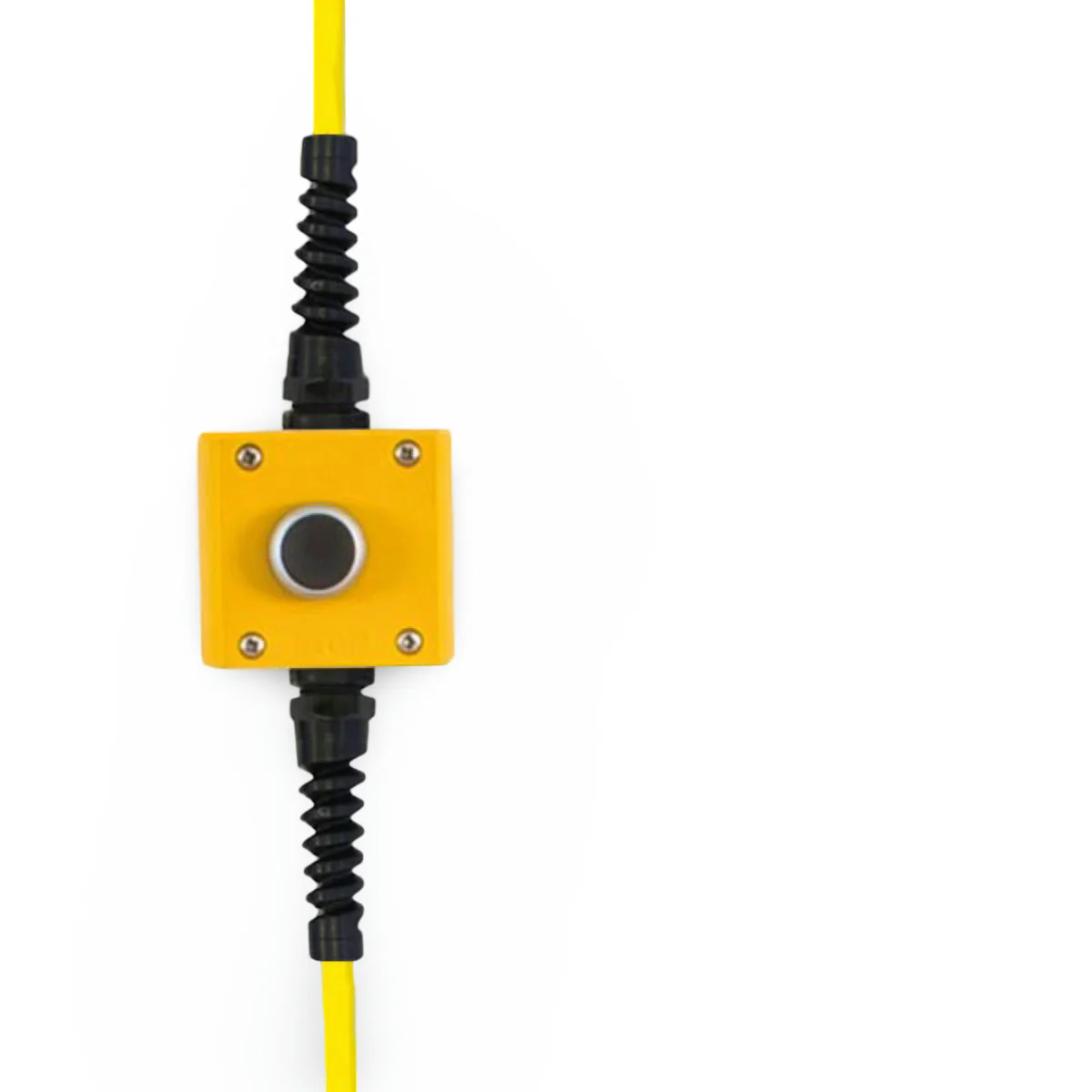

The POWERTUBE II M uses a dimmable converter driver and supports DALI control. That makes it suitable for structured site lighting plans and professional temporary setups. For quick daily use, it can also be switched on and off and dimmed via a push-button. This gives you flexible brightness control without adding extra dimmer hardware at the luminaire body.

Use dimming to reduce glare and save energy

Not every job needs full output. Dimming helps when work is close to the luminaire, or when reflections cause eye fatigue. It also helps in public spaces and events where you want enough light to work, but not more than necessary.

Built for transport, repeated setup, and harsh conditions

POWERTUBE II M is designed for real daily handling. The housing is aluminium with a powder-coated finish. The base plate is steel and powder-coated, with rubber feet for grip and stability. The opal cover is made of impact- and break-resistant polycarbonate. These details matter when the luminaire is loaded, unloaded, repositioned, and packed many times per week.

Protection ratings that match jobsite reality

The luminaire is rated IP65 for protection against dust and water jets. Impact resistance is IK08, which helps against knocks during setup and transport. The filament test rating of 850 °C supports robust material selection for demanding environments.

Mounting options for changing work zones

POWERTUBE II M is flexible by design. It can be used on a tripod (mast), as a floor lamp, or suspended. The integrated holding sleeve fits a 30 mm stand spigot according to DIN 14640, so it matches common professional tripods used on construction sites, industrial maintenance, and event infrastructure. The top handle supports safe carrying and practical suspension when floor space must stay clear.

Practical placement tips

• Mount higher on a mast to expand the light field.
• Place on the floor for quick tasks and short interventions.
• Suspend to keep walkways clear and reduce trip hazards.
• Aim for even coverage, not maximum brightness everywhere.
• Dim when reflections make the zone uncomfortable.

Electrical planning and inrush behaviour

Temporary grids and generators can be sensitive to inrush peaks. This luminaire has defined inrush behaviour, which helps when you deploy multiple units on one circuit. Inrush current is 100 A with a duration of 209 µs. Practical circuit planning can follow these guidelines for the number of luminaires per fuse type: B10A up to 3 units, B16A up to 5 units, C10A up to 5 units, and C16A up to 8 units. Always apply local electrical rules, cable lengths, and the condition of the supply.

Transport and what is included

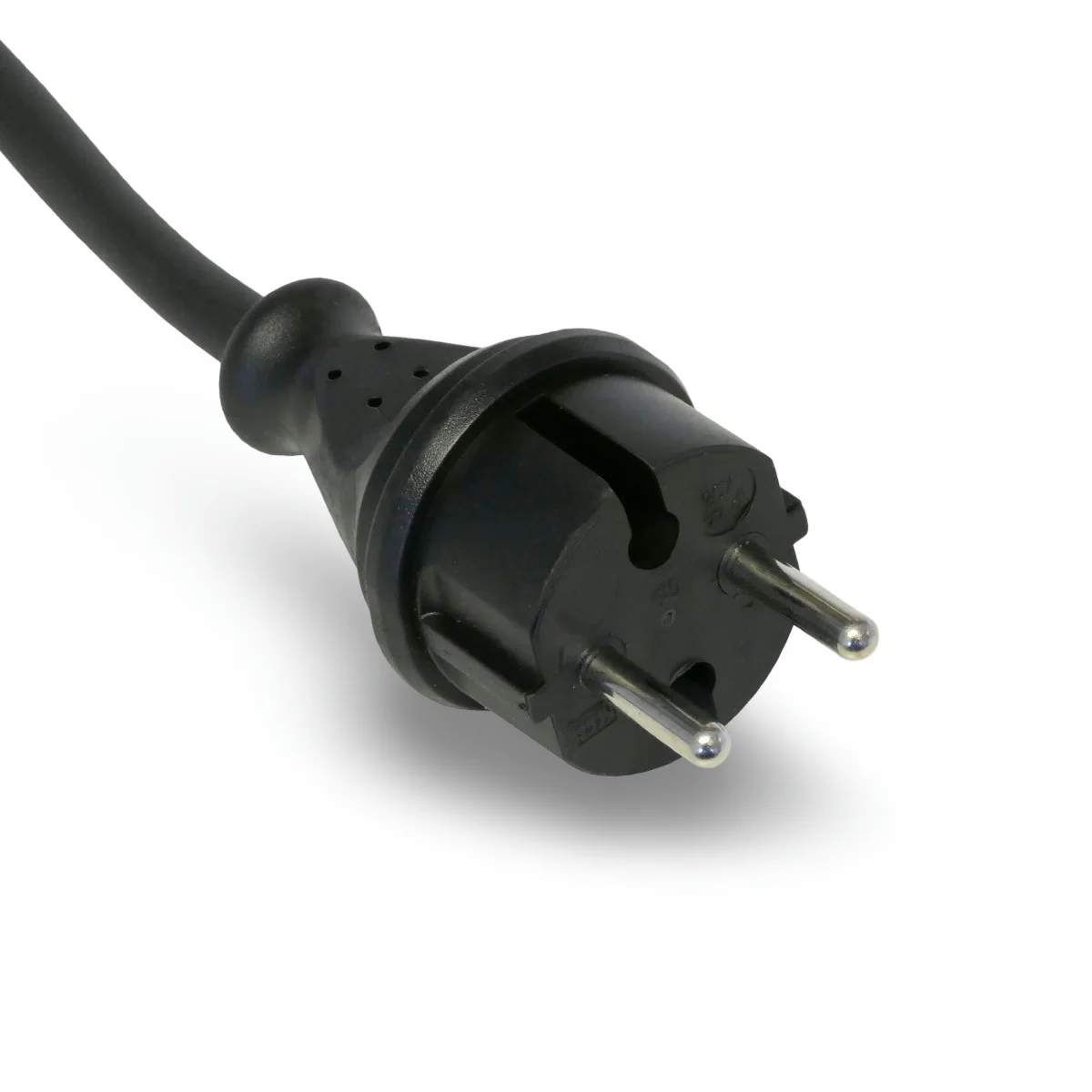

POWERTUBE II M is supplied with a 7.5 m supply cable (H07BQ-F) and a Type E+F plug (CEE 7/17). The longer cable supports flexible placement without immediate extension cords.

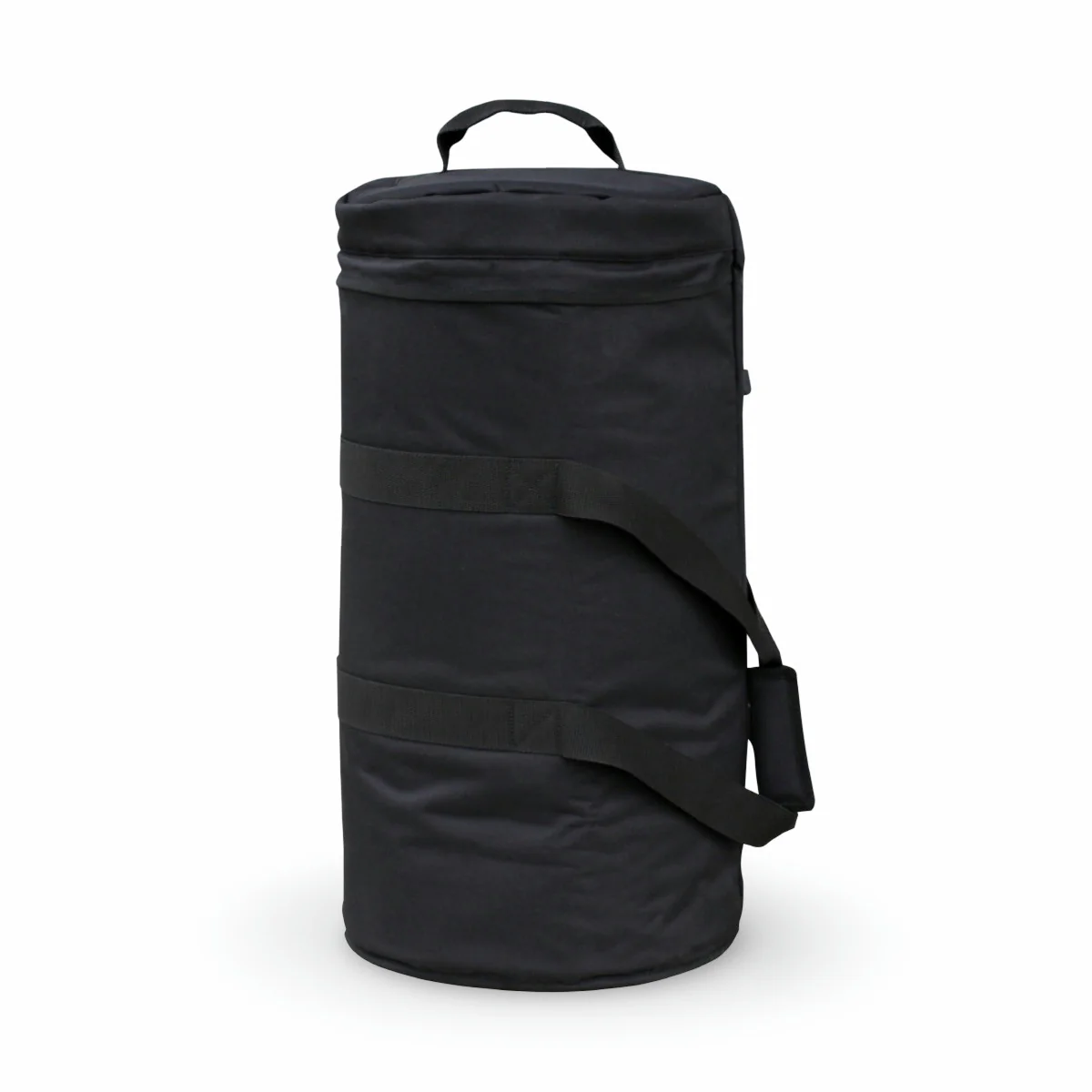

NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.

Basic technical specifications

Product	POWERTUBE II M
Article	73P01000-0006.P
Category / colour	Large-area lights, grey
Diameter	270 mm
Height	590 mm
Weight	10.23 kg
Light source	LED
Colour temperature	5000 K
CRI	80
Rated luminous flux	24,000 lm
System power	187 W
System efficiency	128 lm/W
Glare evaluation	RUG (4H / 8H): 28.1
Beam angle	Down 180° / Up 180°
LED rated life	50,000 h (L70/B50)
Photobiological safety	EN 62471, risk group 0
Driver	Converter, dimmable
Control	DALI (also on/off and dimmable via push-button)
Voltage	220–240 V AC
Frequency	50 / 60 Hz
Supply cable / plug	7.5 m, H07BQ-F, 2 × 1.0 mm² / Type E+F (CEE 7/17)
Type of protection	IP65
Protection class	Class II
Impact resistance	IK08
Filament test	850 °C
Ambient temperature	-25 °C to +30 °C
Safety marks	D-mark
Conformity mark	CE
Inrush current / duration	100 A / 209 µs
Luminaires per fuse	B10A: 3 | B16A: 5 | C10A: 5 | C16A: 8
CIE / CEN flux code	12 36 66 50 100

Who this luminaire is for

POWERTUBE II M is ideal for teams who value speed, uniform light, and rugged handling. It fits construction and infrastructure work, industrial maintenance, event build-outs, and emergency support tasks. If your job involves frequent repositioning, changing work zones, and fast pack-down, the tube format and flexible mounting options become a real advantage.

NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
