Large area luminaire POWERTUBE II L 230V AC on/off with IP68 plug

Product overview

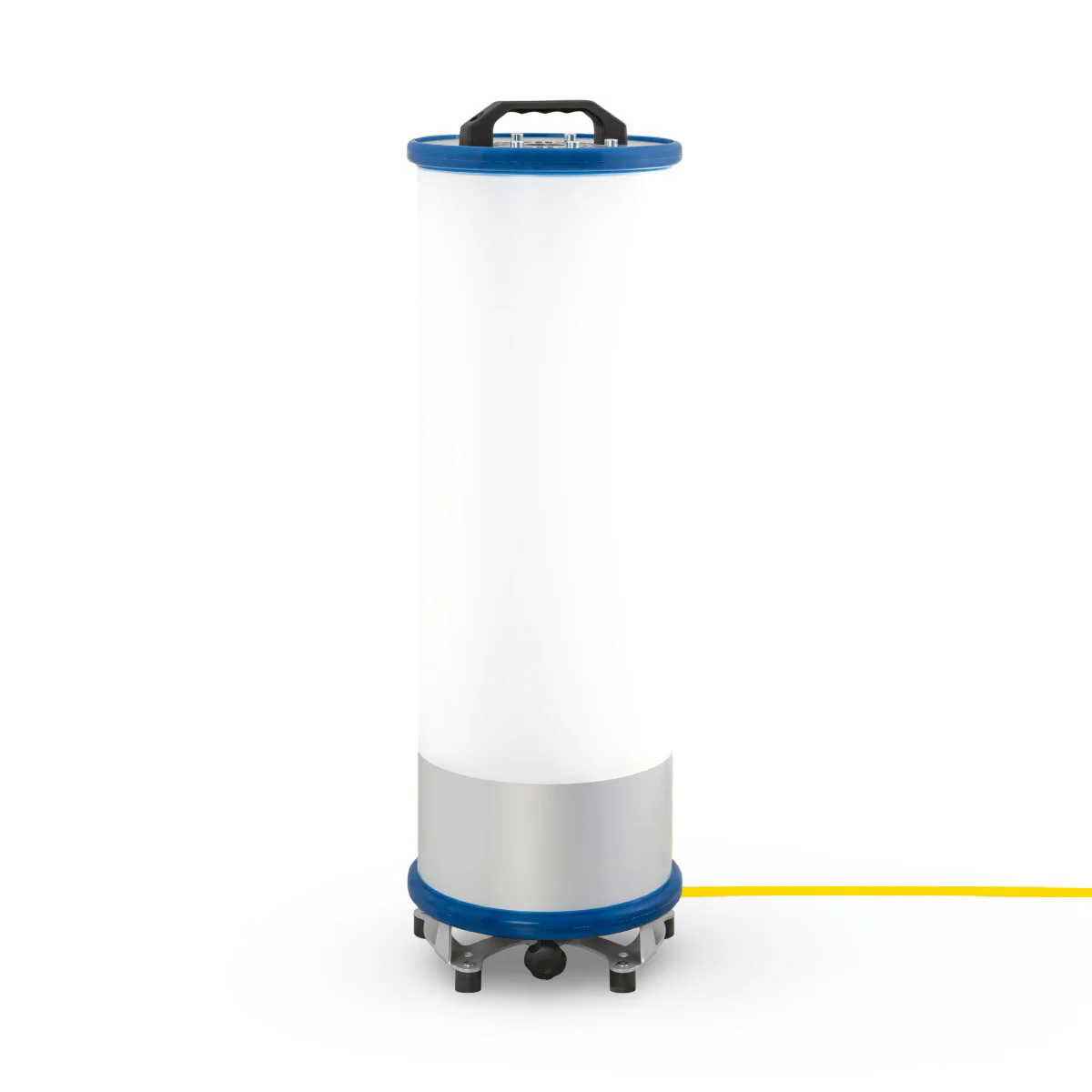

The SONLUX POWERTUBE II L is a mobile LED large-area luminaire for rapid scene lighting. Its tube format delivers a soft 360° light field. The light wraps around people and equipment. Shadows are reduced across the whole zone. Fewer dark corners means safer movement. It also means faster setup on busy sites.

This version focuses on simple operation. A robust toggle switch controls the output. You can select Off, 180° illumination, or 360° illumination. This gives you control without extra electronics. Use 180° when you light a defined work face. Use 360° when teams work around the lamp.

Light that feels even, not harsh

The full-surface LED layout supports uniform brightness. The opal cover spreads the light smoothly. It reduces glare and hard contrasts. This helps during long shifts. It also helps during inspections and detailed work. The colour temperature is 5000 K. The CRI is 80. Colours stay readable and clear.

Two outputs for two situations

The switchable concept supports practical energy use. In 180° mode, the lamp provides 25,000 lm. In 360° mode, it reaches 50,000 lm. That flexibility reduces the need to move the luminaire. It also reduces the need for extra fixtures. You can keep cable routing simpler. You can keep walkways clearer.

Built for daily transport and rough handling

The housing is aluminium with a powder-coated finish. The base plate is steel and powder-coated. Rubber feet add grip and stability. They also protect indoor floors. The diffuser is impact- and break-resistant polycarbonate. This helps when the luminaire is packed often. It also helps during fast repositioning on site.

Protection for outdoor and industrial use

The luminaire is rated IP65 for dust and water jets. It is rated IK08 for impact resistance. These ratings support real job conditions. Rain and spray are not a problem. Dusty environments are not a problem. Typical knocks during setup are expected.

IP68 plug for wet and exposed environments

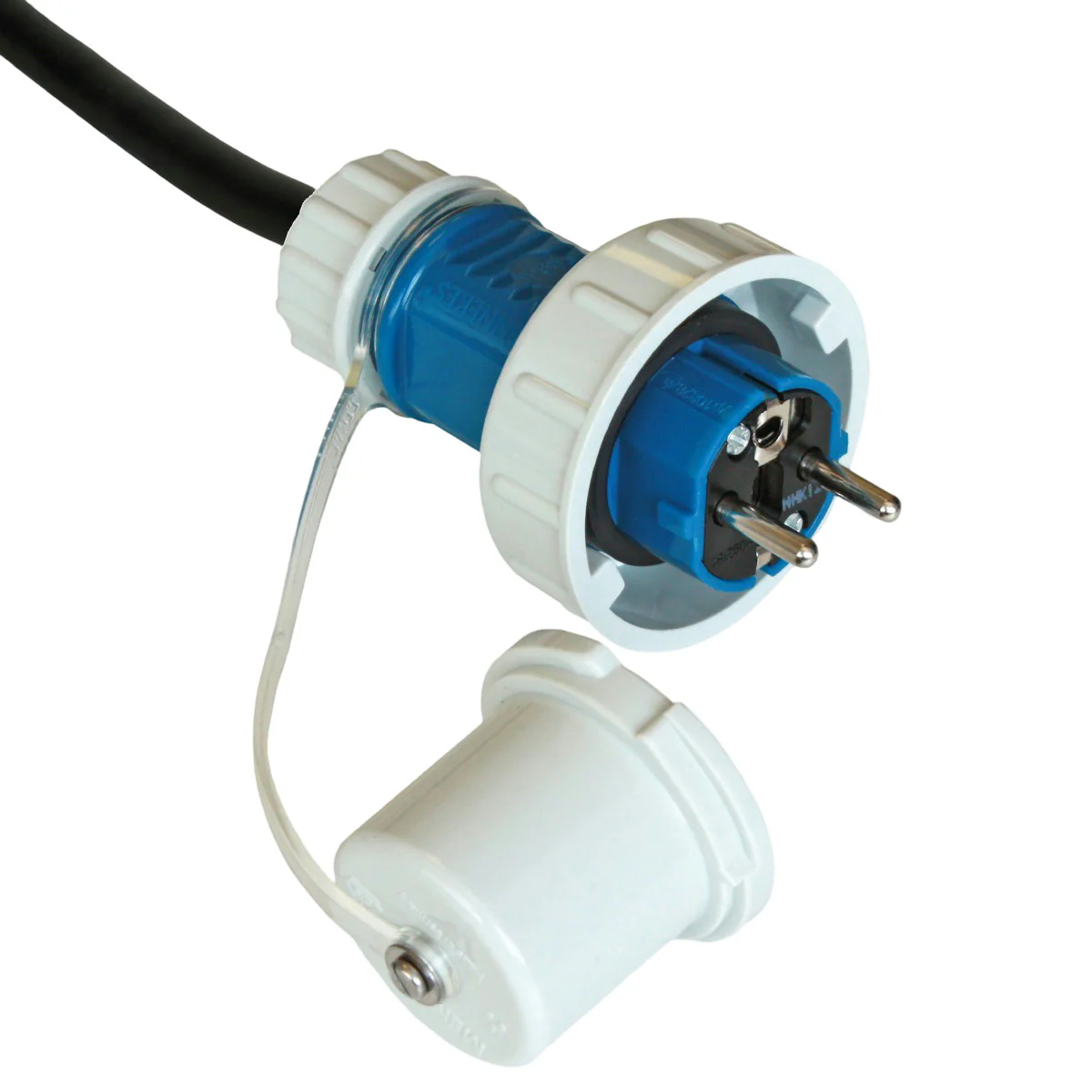

This model is supplied with a Type E+F plug (CEE 7/7) with IP68 protection. That detail matters in wet conditions. Think puddles, wash-down zones, and heavy rain. It also helps in emergency work outdoors. You gain extra confidence at the connection point. You reduce the risk of interruptions.

Mounting options that match the job

The POWERTUBE II L can be used in several ways. Place it on the floor for quick tasks. Mount it on a mast (tripod) for wide coverage. Suspend it from the handle when floor space is limited. The integrated sleeve fits a 30 mm DIN spigot. It follows DIN 14640. This matches common professional stands.

Where the tube format pays off

360° lighting changes the workflow. The zone becomes evenly lit from all sides. Teams can move around the lamp without losing light. Pallets, vehicles, and barriers cast softer shadows. This improves comfort and visibility. It also reduces the urge to add extra spotlights.

Power planning that is easier to manage

Temporary grids can be sensitive to inrush peaks. This luminaire has defined inrush behaviour. Inrush current is 200 A with 209 µs duration. This helps when you plan multiple units per circuit. A practical guideline is: B10A one unit, B16A up to two. C10A up to two, C16A up to four. Always follow local rules and site conditions.

What is included

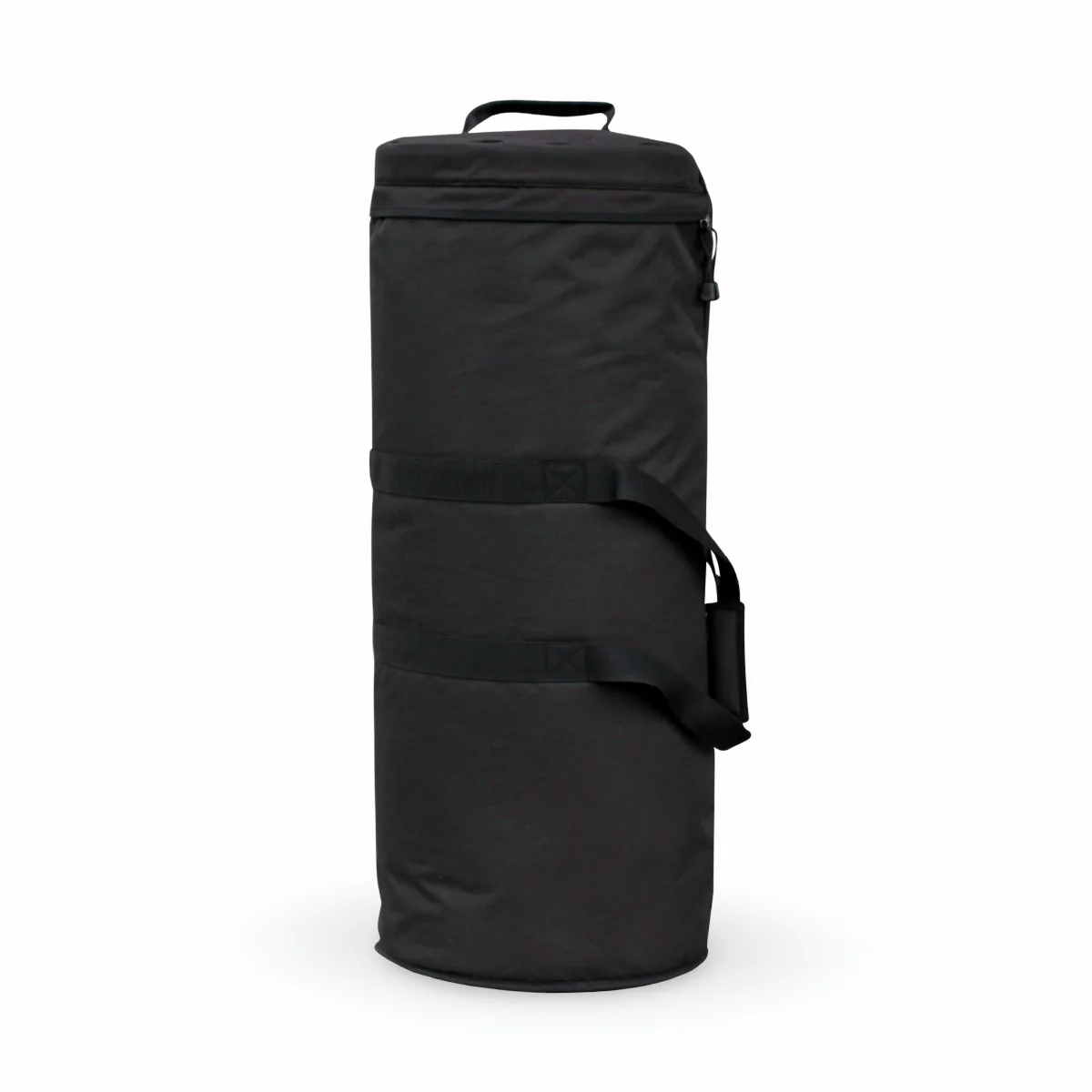

NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.

Basic technical specifications

Product	POWERTUBE II L
Article	73P03001-0006
Colour	Grey
Diameter	270 mm
Height	850 mm
Weight	13.73 kg
Light source	LED
Colour temperature	5000 K
CRI	80
Control	Toggle switch (Off / 180° / 360°)
Rated luminous flux	25,000 lm (180°) | 50,000 lm (360°)
System power	186 W (180°) | 372 W (360°)
System efficiency	134 lm/W (180°) | 134 lm/W (360°)
Glare evaluation	RUG (4H/8H): 28.8 | 30.4
Beam angle	Down 180° | 90°/90°/0°/90° Up 180° | 90°/90°/0°/90°
LED rated life	50,000 h (L80/B50)
Photobiological safety	EN 62471, Risk group 0
Driver	Converter
Input voltage	220–240 V AC, 50/60 Hz
Protection rating	IP65
Impact resistance	IK08
Supply cable / plug	5 m, H07RN-F, 2 × 1.5 mm² / Type E+F (CEE 7/7), IP68
Mounting	Floor use, mast (tripod), suspension 30 mm DIN spigot sleeve (DIN 14640)
Included	Textile carrying bag

Setup tips for best results

• Use 180° mode for corridors and boundary lighting.
• Use 360° mode when teams work around the lamp.
• Mount higher on a mast to widen the light field.
• Route cables away from walkways to cut trip risks.
• Keep the opal cover clean for stable uniform output.

NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
