Large area luminaire POWERTUBE II L 230V AC on/off

Product overview

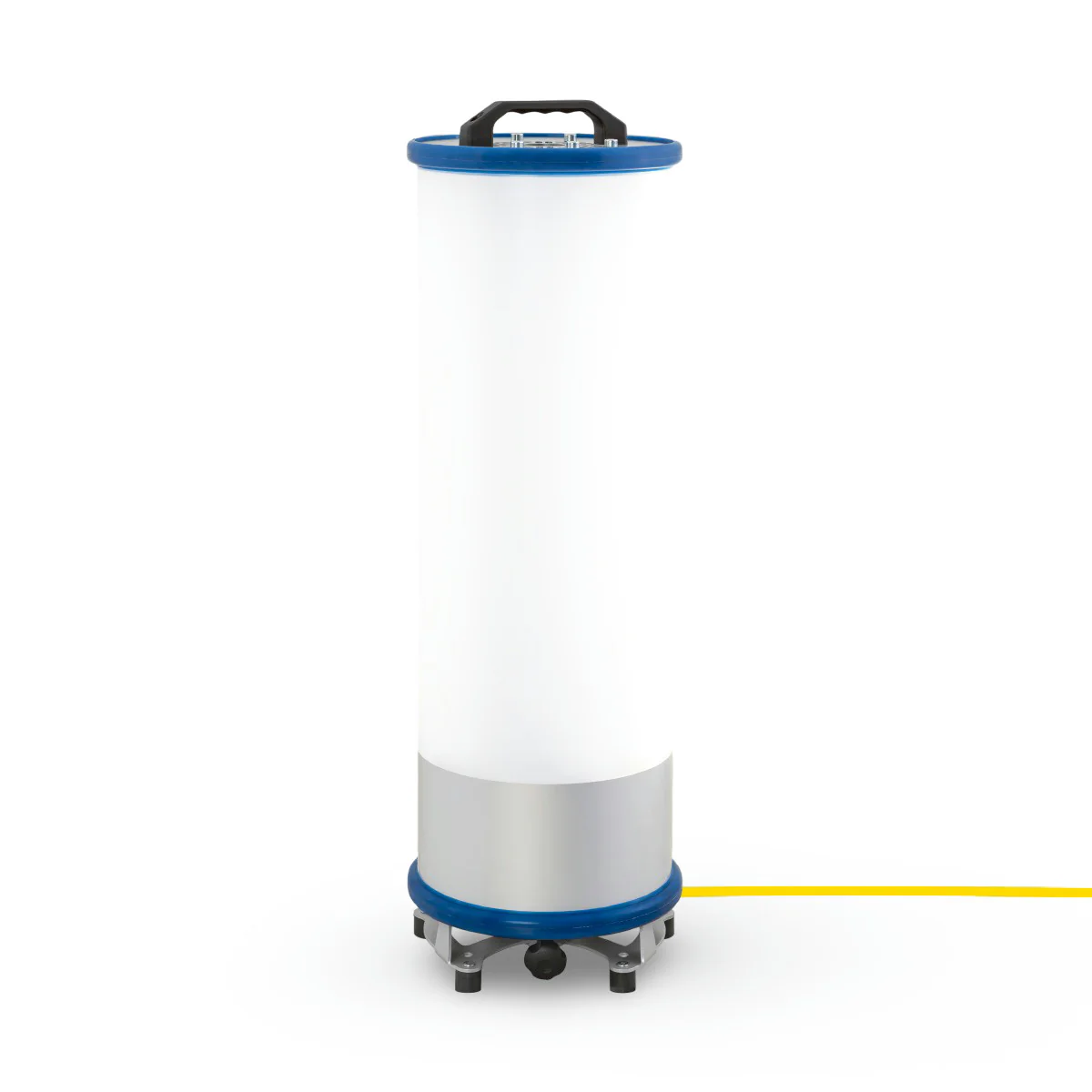

The SONLUX POWERTUBE II L is a portable large-area LED luminaire built to light up big zones fast. Its tube design creates a wide, soft light field that wraps around people and objects. This reduces strong shadows and makes the work area feel more even. It is a practical solution for sites where you want fewer fixtures, fewer cables, and quicker setup.

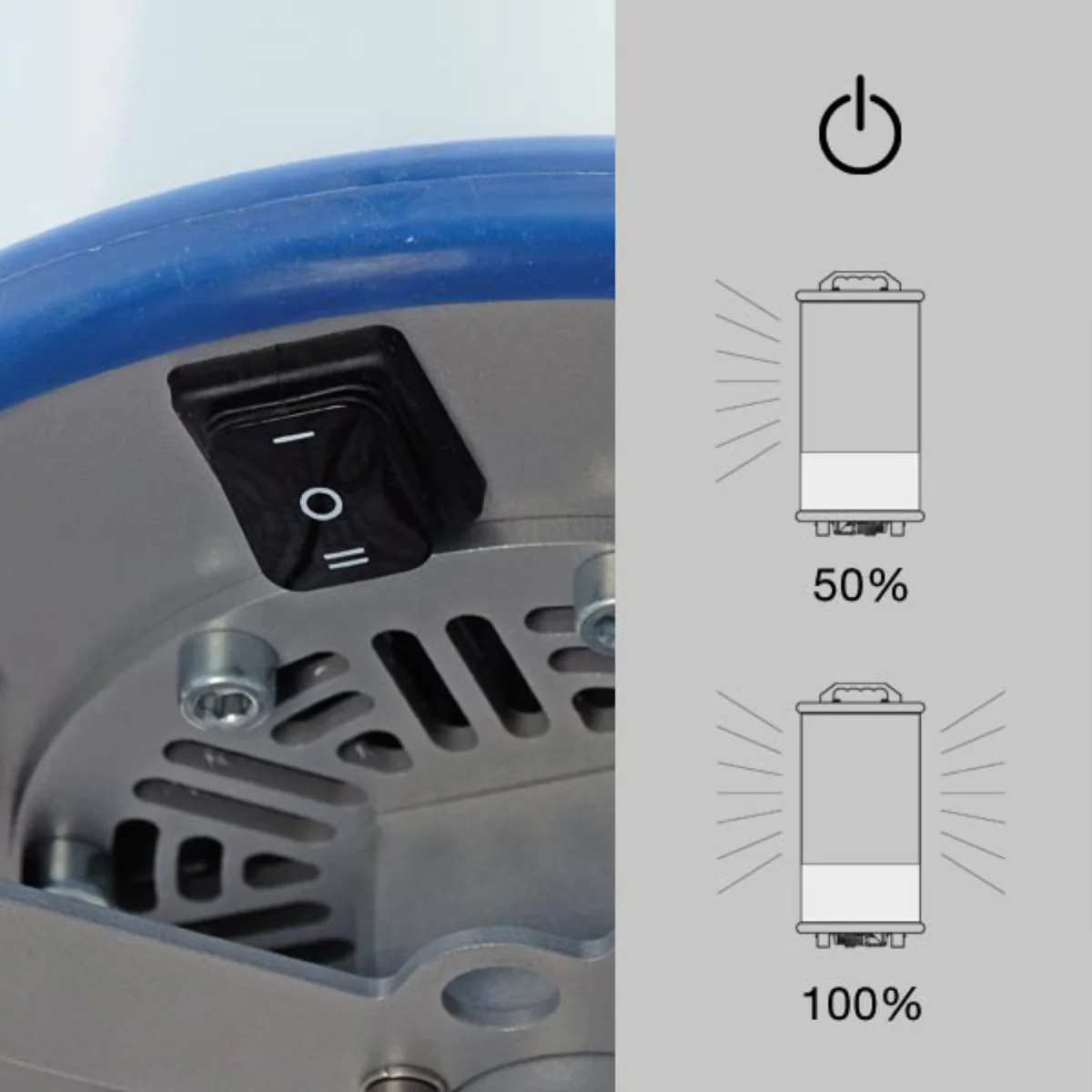

This specific version is controlled by a rugged toggle switch. You can turn the luminaire off, run it in a half-side mode (180°), or switch to full-area mode (360°). That makes it easy to adapt the output to the scene without any extra controllers or dimming gear. Use 180° when you light a wall side, a corridor edge, or a staged work zone. Use 360° when you need full-area coverage for teams that move around the lamp.

Two operating modes that match real tasks

On many sites, full power is not always needed. The POWERTUBE II L gives you a simple way to choose the right mode. In 180° mode, the lamp delivers a rated luminous flux of 25,000 lm with 186 W system power. In 360° mode, it reaches 50,000 lm with 372 W. The switch is quick and intuitive. It supports better energy use and helps reduce unnecessary glare when you only need light in one direction.

Uniform light with a clear 5000 K tone

The luminaire produces a clean 5000 K light, suitable for demanding work and clear visibility. CRI is 80, which supports reliable recognition of colours, labels, and safety markings. The opal cover is made of impact- and break-resistant polycarbonate. It spreads the light smoothly and reduces harsh contrasts. The result is comfortable illumination that works well for long shifts, inspections, and continuous work.

Rugged build for repeated transport

The housing is aluminium with a powder-coated finish. The base plate is steel and powder-coated. Rubber feet improve stability and help protect indoor floors. The luminaire is rated IP65, which supports use in dusty areas and in rain or spray. Impact resistance is IK08, so it handles typical knocks during repositioning and packing. A high-temperature filament test rating supports robust material choices for demanding environments.

Flexible mounting on stands, floors, and overhead points

The POWERTUBE II L can be used on a tripod, as a floor lamp, or suspended. It includes an integrated holding sleeve for a 30 mm stand spigot in accordance with DIN 14640. This matches common professional tripods and masts used on construction sites and event setups. The top handle supports safe carrying and can also be used for suspension when an area must stay clear of obstacles.

Electrical planning made easier

Temporary power and generators can be sensitive to inrush peaks. This luminaire has defined inrush behaviour, which helps planning multiple units on one circuit. Inrush current is 200 A with a duration of 209 µs. A practical guideline is: one unit on B10A, up to two units on B16A, up to two units on C10A, and up to four units on C16A. Always apply local electrical rules, cable lengths, and site conditions.

What is included

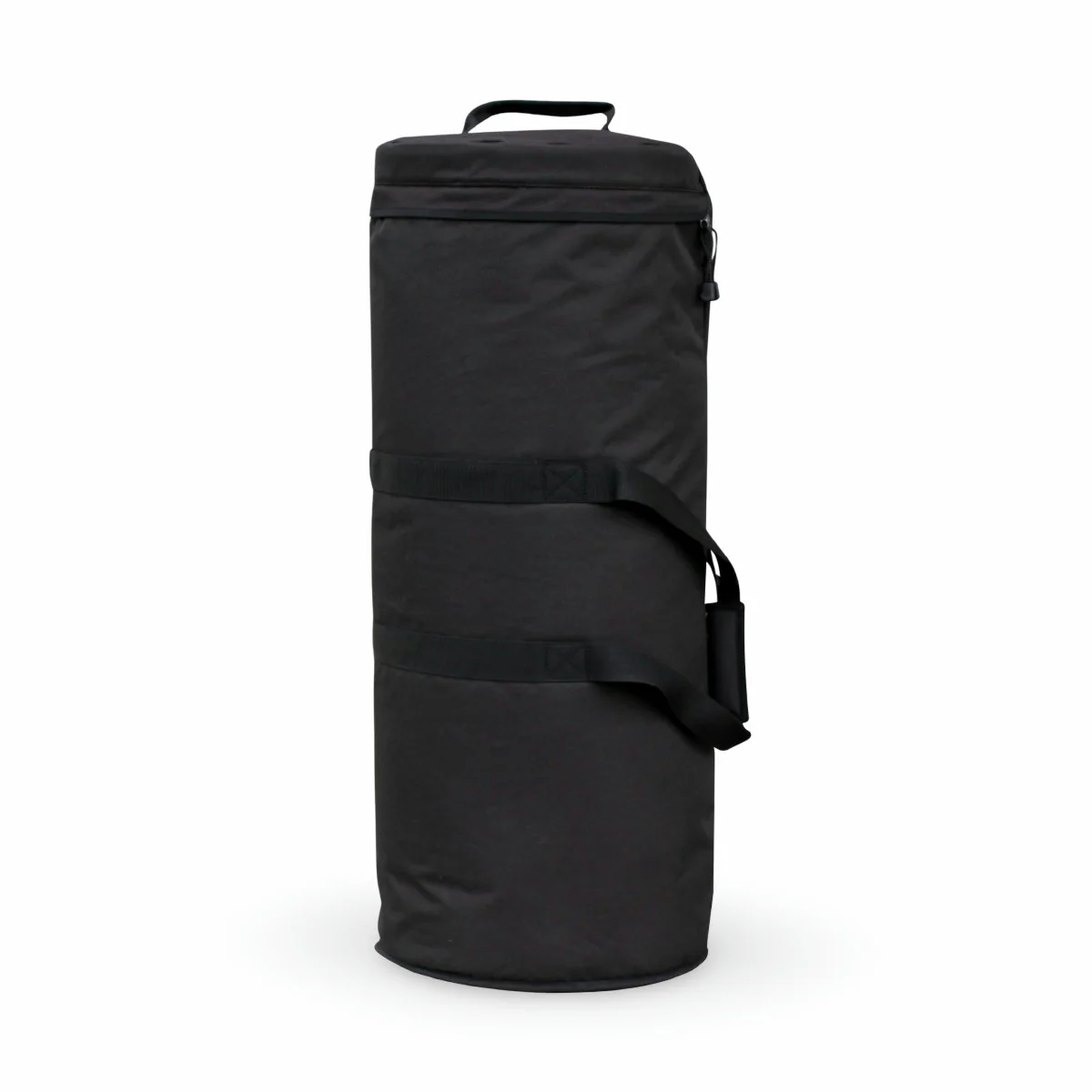

Every deployment starts with transport and storage. This product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.

Basic technical specifications

Product	POWERTUBE II L
Article	73P03000-0006
Colour	Grey
Diameter	270 mm
Height	850 mm
Weight	13.42 kg
Light source	LED
Colour temperature	5000 K
Colour rendering index	CRI 80
Operating modes	Toggle switch: Off / 180° / 360°
Rated luminous flux	25,000 lm (180°) | 50,000 lm (360°)
System power	186 W (180°) | 372 W (360°)
System efficiency	134 lm/W (both modes)
Glare evaluation	RUG (4H/8H): 28.8 | 30.4
Beam angle	Down 180° | Up 180° (mode-dependent distribution)
LED rated life	50,000 h (L80/B50)
Photobiological safety	EN 62471, Risk group 0
Driver	Converter
Control	On/off (via toggle switch)
Input voltage	220–240 V AC, 50/60 Hz
Inrush	200 A / 209 µs
Recommended units per fuse	B10A: 1 | B16A: 2 | C10A: 2 | C16A: 4
Protection rating	IP65
Impact resistance	IK08
Protection class	Class II
Filament test	850 °C
Ambient temperature	-20 °C to +25 °C
Safety marks	D-mark, CE

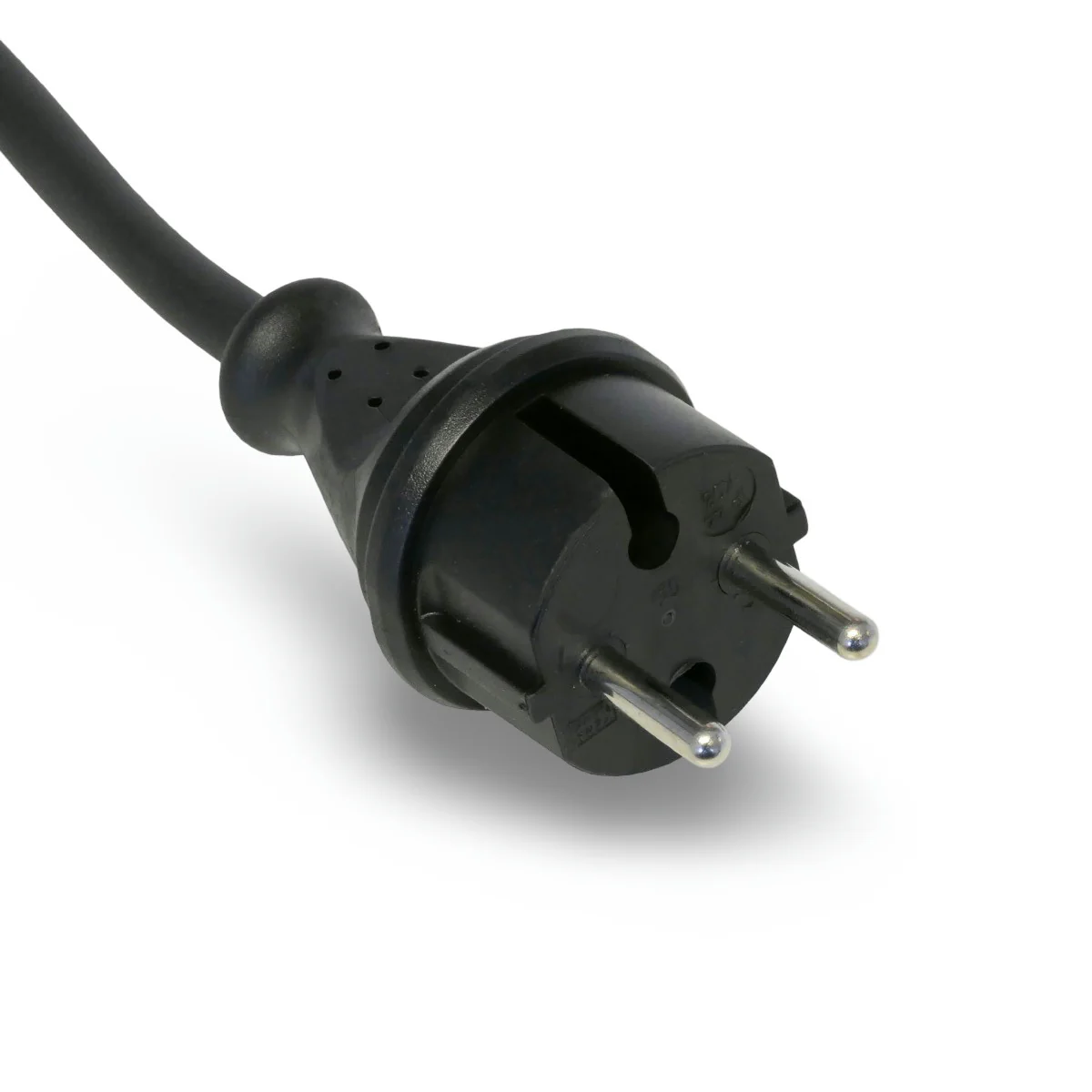

Supply cable / plug	5 m, H07RN-F, 2 × 1.0 mm² / Type E+F (CEE 7/17)
Included	Textile carrying bag

Where this version shines

The switchable 180° / 360° concept is ideal when your workspace changes during the day. Start in 180° mode to light a defined work face. Switch to 360° when the team expands into a wider zone. This reduces the need to reposition multiple lights. It also helps keep the cabling simpler and improves site organisation.

Quick setup tips

• Mount the luminaire higher to reduce eye-level glare.
• Use 180° mode for corridors and boundary lighting.
• Use 360° mode for teams working all around the lamp.
• Route cables away from walkways to reduce trip risks.
• Keep the opal cover clean for consistent output.

NOTE: The product includes only the lamp and a textile carrying bag. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
