Large area light POWERDISK 230V AC on/off 57 000 lm
Product overview
The SONLUX POWERDISK (80P02000-0006) is a portable large-area LED luminaire built for high-output, low-glare work lighting. It is designed to flood wide zones with a smooth, usable light field, instead of creating a harsh hotspot. The result is better visibility for people, tools, cable runs, markings, and moving equipment.
POWERDISK combines a highly efficient COB LED engine with an opal diffuser to create uniform illumination that feels calmer on reflective surfaces. It is a strong choice for construction sites, industrial maintenance, temporary outdoor work, and any environment where you want very high lumen output with controlled glare.
High output with efficient power draw
This version delivers a rated luminous flux of 57,000 lm at a system power of 380 W. The system efficiency reaches 150 lm/W. That performance is ideal when you want to light a large footprint from fewer fixtures and keep your temporary distribution plan clean.
Clear neutral white light
The colour temperature is 5000 K, giving a neutral “daylight” appearance that supports alertness and accurate visibility. With CRI 82 and a colour tolerance of 3 SDCM, colours remain consistent for labels, safety signs, and material recognition. This is important when several luminaires work together in one zone.
Uniform, glare-reduced illumination
The housing is powder-coated aluminium, while the opal cover is made of impact- and break-resistant polycarbonate. This combination supports both durability and light comfort. Glare evaluation is listed as RUG (4H/8H): 29.8, supporting the design goal of strong but usable lighting.
The beam angle is 115°, helping to cover broad working areas without constant repositioning. Use it higher on a mast for wider coverage, or lower when you want more controlled spill and closer task visibility.
Built for tough environments
POWERDISK is rated IP65, making it suitable for dusty areas and for use in rain or water-jet exposure. For impact resistance, it is rated IK10, which supports real jobsite handling. The luminaire operates in an ambient range from -20 °C to +40 °C.
Long service life for daily use
The LED rated life is listed as 100,000 hours (L80/B10). This supports long-term, high-usage deployment with stable performance. Photobiological safety is classified as EN 62471, risk group 1, which is typical for powerful professional work lights.

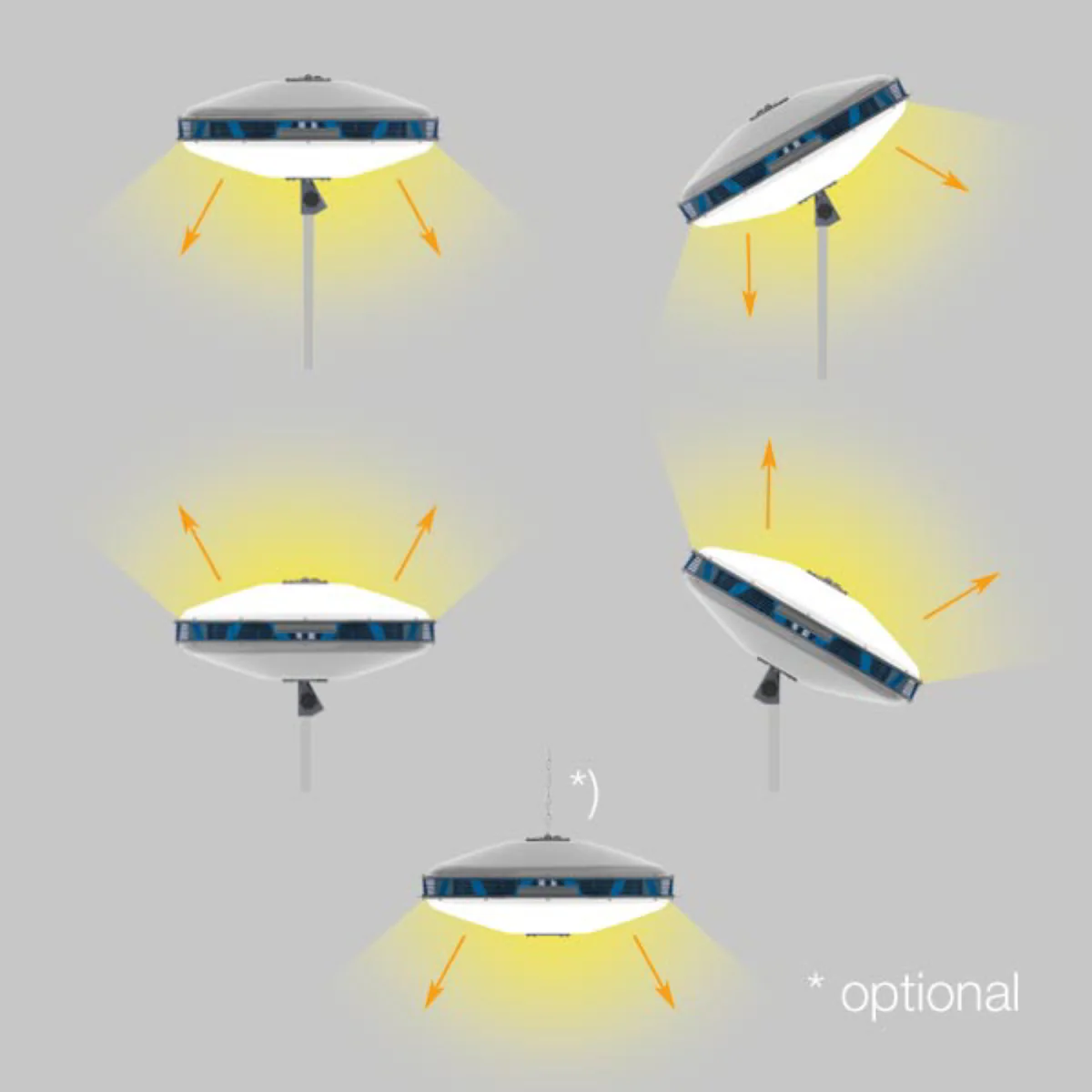

Mounting options: tripod or suspension
POWERDISK can be used on a tripod or suspended. It is supplied with an adapter for spigot mounting d = 30 mm according to DIN 14640. The adapter allows straight mounting or a 30° inclined mounting, which is useful when you want to push light forward into a work face or keep glare away from eye level.
Practical setup tips
- Mount higher to expand the illuminated footprint.
- Use 30° inclination to target a work face and limit back spill.
- Keep the diffuser clean for stable uniform output.
- Route the 10 m cable away from walkways and tripod legs.
- Plan fuse loading when several units share one line.
Electrical planning and inrush behaviour
The luminaire runs on 220–240 V at 50/60 Hz and uses a converter driver with simple on/off control. Inrush current is listed as 23.04 A with a duration of 63 µs. This supports more predictable deployment on temporary grids and generator-fed circuits.
Practical fuse guidance is provided for typical breakers: B10A: 2, B16A: 4, C10A: 4, C16A: 6 luminaires per fuse. Always apply local regulations and consider cable length and supply conditions.
What is included
NOTE: The product includes the POWERDISK luminaire and the spigot mounting adapter (d = 30 mm, DIN 14640) with straight or 30° inclined mounting option. Tripods, suspension adapters, transport bags, and other accessories are selected separately.
Basic technical specifications
| Product | POWERDISK |
| Article | 80P02000-0006 |
| EAN | 4017506105456 |
| Type | Portable large-area luminaire |
| Colour | White |
| Dimensions (L × W × H) | 750 × 630 × 250 mm |
| Weight | 15 kg |
| Housing | Aluminium, powder-coated |
| Cover | Opal polycarbonate, impact- and break-resistant |
| Light source | COB LED |
| Colour temperature | 5000 K |
| CRI | 82 |
| Colour tolerance | 3 SDCM |
| Rated luminous flux | 57,000 lm |
| System power | 380 W |
| System efficiency | 150 lm/W |
| Beam angle | 115° |
| Glare evaluation | RUG (4H/8H): 29.8 |
| LED rated life | 100,000 h (L80/B10) |
| Photobiological safety | EN 62471, risk group 1 |
| Driver | Converter |
| Control | On/off |
| Voltage | 220–240 V / 50 Hz, 60 Hz |
| Inrush current / duration | 23.04 A / 63 µs |
| Luminaires per fuse | B10A: 2 | B16A: 4 | C10A: 4 | C16A: 6 |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Protection class | Class I |
| Filament test | 650 °C |
| Ambient temperature | -20 °C to +40 °C |

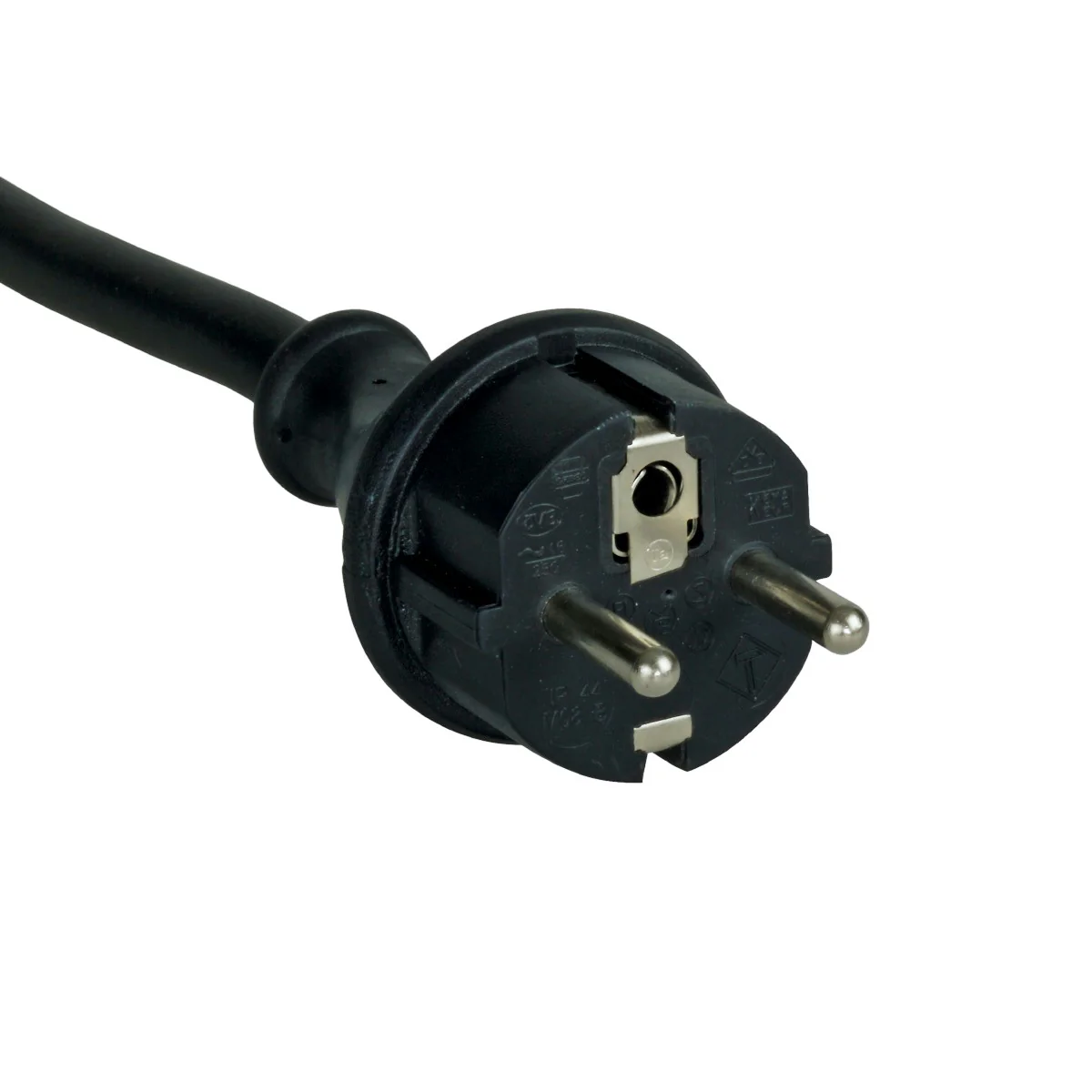

| Supply cable / plug | 10 m, H07BQ-F, 3 × 1.5 mm² / Type E+F (CEE 7/7) |
| Mounting | Tripod or suspended |
| Included adapter | Spigot adapter d = 30 mm (DIN 14640), straight or 30° inclined |
| Marks | D-mark, CE |
Why this version makes sense
If you need a very powerful, portable large-area light with simple on/off operation, high efficiency, and tough protection ratings, POWERDISK 80P02000-0006 is a reliable workhorse. It helps you light large zones with fewer fixtures, keep glare under control, and maintain stable performance across long service hours.
NOTE: The product includes only the lamp. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
