Large area light POWERDISK 230V AC dimmable 57 000 lm with IP68
Product overview

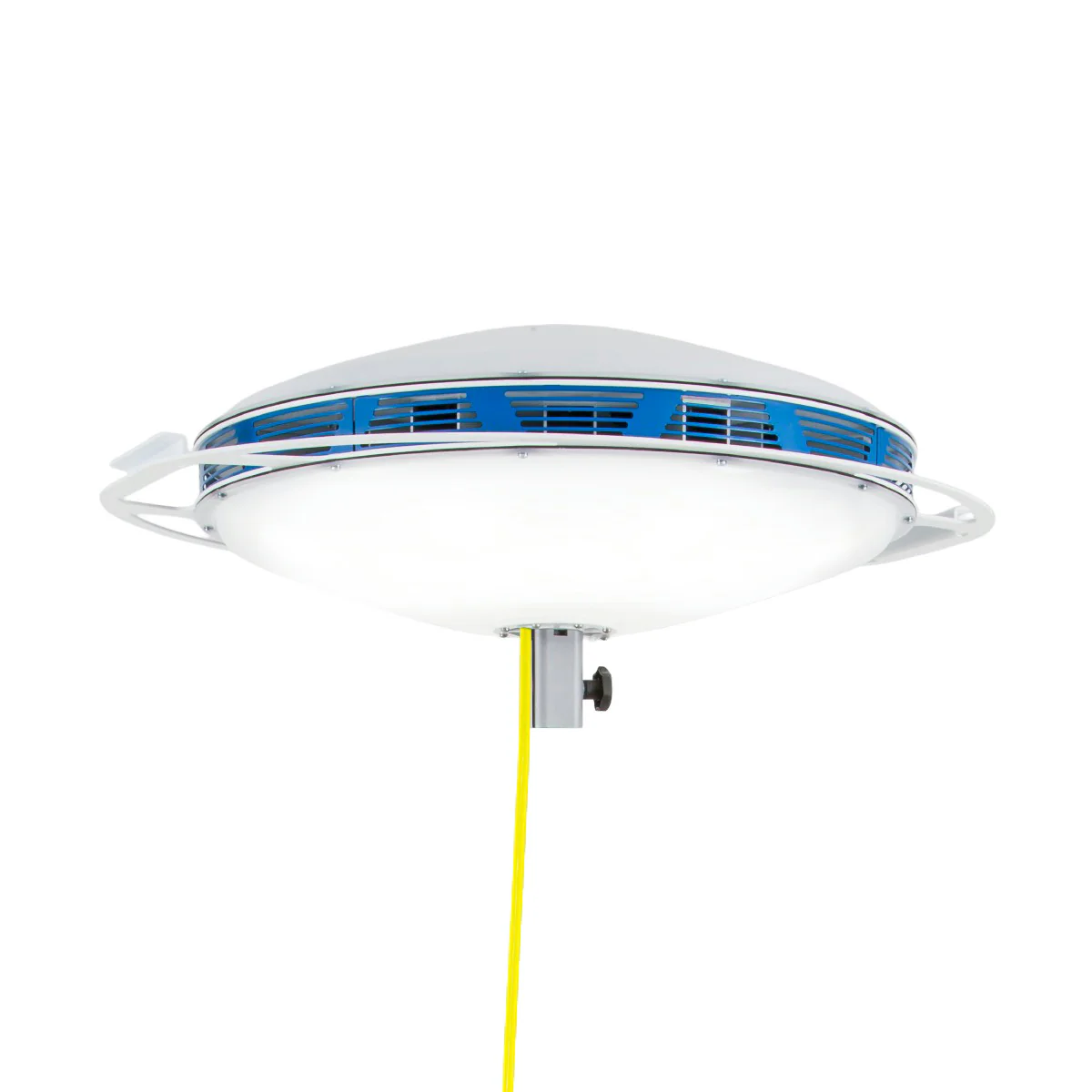

The SONLUX POWERDISK 80P01001-0006 is a portable large-area LED luminaire built to deliver a huge, comfortable light field across real work zones. Instead of a harsh hotspot, POWERDISK creates wide, uniform illumination through an opal diffuser. This helps teams see hazards earlier, work faster, and stay less fatigued during long shifts.
This version combines two practical advantages: Touch-Dim brightness control and a Type E+F (CEE 7/7) IP68 plug. You get strong light when you need it, and the ability to dim down when glare, reflections, or power planning demand more control. The IP68 plug is a major benefit for outdoor work, muddy ground, splash zones, and wet-weather build-outs where standard plugs often become the weak point.
Soft, glare-reduced lighting that stays usable
High lumen numbers matter only when the light remains comfortable. POWERDISK uses a large luminous surface and an opal polycarbonate cover to reduce glare and smooth out brightness across the work zone. This is especially valuable on wet asphalt, glossy floors, painted steel, and vehicle bodywork where strong lights can cause tiring reflections.
The wide 115° beam angle supports broad coverage with fewer luminaires and fewer repositions. Mount it higher to expand the footprint and reduce shadows. Mount it lower to control spill, keep glare down, and focus illumination where people actually work.
57,000 lm output with efficient power use
POWERDISK delivers a rated luminous flux of 57,000 lm at a system power of 380 W. With a listed system efficiency of 150 lm/W, it provides a lot of usable light without wasting power. In practice, that helps you light larger zones with fewer fixtures, keeping cable runs cleaner and reducing trip hazards.
Neutral white for clear visibility
The colour temperature is 5000 K, which creates a crisp neutral-white “daylight” impression suitable for technical work. With CRI 82 and 3 SDCM colour tolerance, colours remain consistent for safety markings, warning labels, and material recognition, especially when several luminaires are used together.
Touch-Dim control for real site conditions
This model is on/off and dimmable via push-button (Touch-Dim). Dimming is useful when you work close to reflective surfaces, when the luminaire is positioned lower than usual, or when you want a calmer light level for tasks that do not require maximum output.
- Run full power for wide coverage, safety, and faster movement.
- Dim down for close work, reduced glare, and more controlled spill.
- Fine-tune brightness when multiple luminaires share one circuit.
Rugged build for transport and hard use
The housing is powder-coated aluminium and the cover is impact- and break-resistant polycarbonate. POWERDISK is made for frequent transport, quick deployment, and the bumps that happen in busy areas.
Protection ratings for jobsite reality
The luminaire is rated IP65 and IK10, supporting outdoor use in rain and dusty environments as well as rough handling. It is designed to operate from -20 °C to +40 °C, making it suitable for winter outdoor work and warm indoor industrial environments.
Long service life
The LED rated life is listed as 100,000 h (L80/B10). That supports long-term professional deployments with stable output over time. Photobiological safety is classified as EN 62471, risk group 1.
Mounting on tripod or suspension
POWERDISK can be used on a tripod mast or suspended. It includes an adapter for spigot mounting d = 30 mm according to DIN 14640. The adapter supports two mounting positions: straight or 30° inclined. The inclined option helps when you want to push the light into a work face, reduce back spill, or keep glare away from direct eye level.
- Straight mounting: general, wide-area illumination.
- 30° inclined mounting: work fronts, walls, trenches, loading edges.
- Suspended use: keep the floor clear in tight or crowded zones.
Power, cabling, and circuit planning
The luminaire runs on 220–240 V at 50/60 Hz. It is supplied with a 10 m H07BQ-F cable (3 × 1.5 mm²) and a Type E+F (CEE 7/7) IP68 plug. This model also includes an additional function: with switch, supporting fast control at the luminaire.
For practical planning, the inrush current is specified as 15.3 A with an inrush duration of 760 µs. Typical guidance for luminaires per fuse is: B10A: 2, B16A: 4, C10A: 4, C16A: 6. Always apply local electrical rules and consider real cable lengths, supply conditions, and generator behaviour.
What is included
NOTE: The product includes the POWERDISK luminaire and the spigot mounting adapter (d = 30 mm, DIN 14640) with straight or 30° inclined mounting option. Tripods, suspension adapters, transport bags, and other accessories are selected separately.
Basic technical specifications
| Product | POWERDISK |
| Article | 80P01001-0006 |
| Dimensions (L × W × H) | 750 × 630 × 250 mm |
| Weight | 15.7 kg |
| Housing | Aluminium, powder-coated |
| Cover | Opal polycarbonate, impact- and break-resistant |
| Light source | LED |
| Colour temperature | 5000 K |
| CRI | 82 |
| Colour tolerance | 3 SDCM |
| Rated luminous flux | 57,000 lm |
| System power | 380 W |
| System efficiency | 150 lm/W |
| Beam angle | 115° |
| Glare evaluation | RUG (4H/8H): 29.8 |
| LED rated life | 100,000 h (L80/B10) |
| Photobiological safety | EN 62471, risk group 1 |
| Driver | Converter, dimmable |
| Control | Touch-Dim |
| Voltage | 220–240 V / 50 Hz, 60 Hz |
| Inrush current / duration | 15.3 A / 760 µs |
| Luminaires per fuse | B10A: 2 | B16A: 4 | C10A: 4 | C16A: 6 |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Protection class | Class I |
| Filament test | 650 °C |
| Ambient temperature | -20 °C to +40 °C |
| Supply cable / plug | 10 m, H07BQ-F, 3 × 1.5 mm² / Type E+F (CEE 7/7), IP68 |
| Additional functions | With switch |
| Mounting | Tripod or suspended |
| Included adapter | Spigot adapter d = 30 mm (DIN 14640), straight or 30° inclined |
| Flux code | CIE/CEN: 44 75 92 97 100 |
| Marks | D-mark, CE |
Why this version makes sense
If you want the dimmable POWERDISK platform but also need a more robust plug solution for wet and exposed environments, 80P01001-0006 is the practical choice. You get the same massive, glare-reduced light field, plus Touch-Dim control and an IP68 plug that helps the connection point survive real jobsite conditions.
NOTE: The product includes only the lamp. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
