Large area light POWERCASE M 230V AC on/off 59 000 lm with IP68 plug

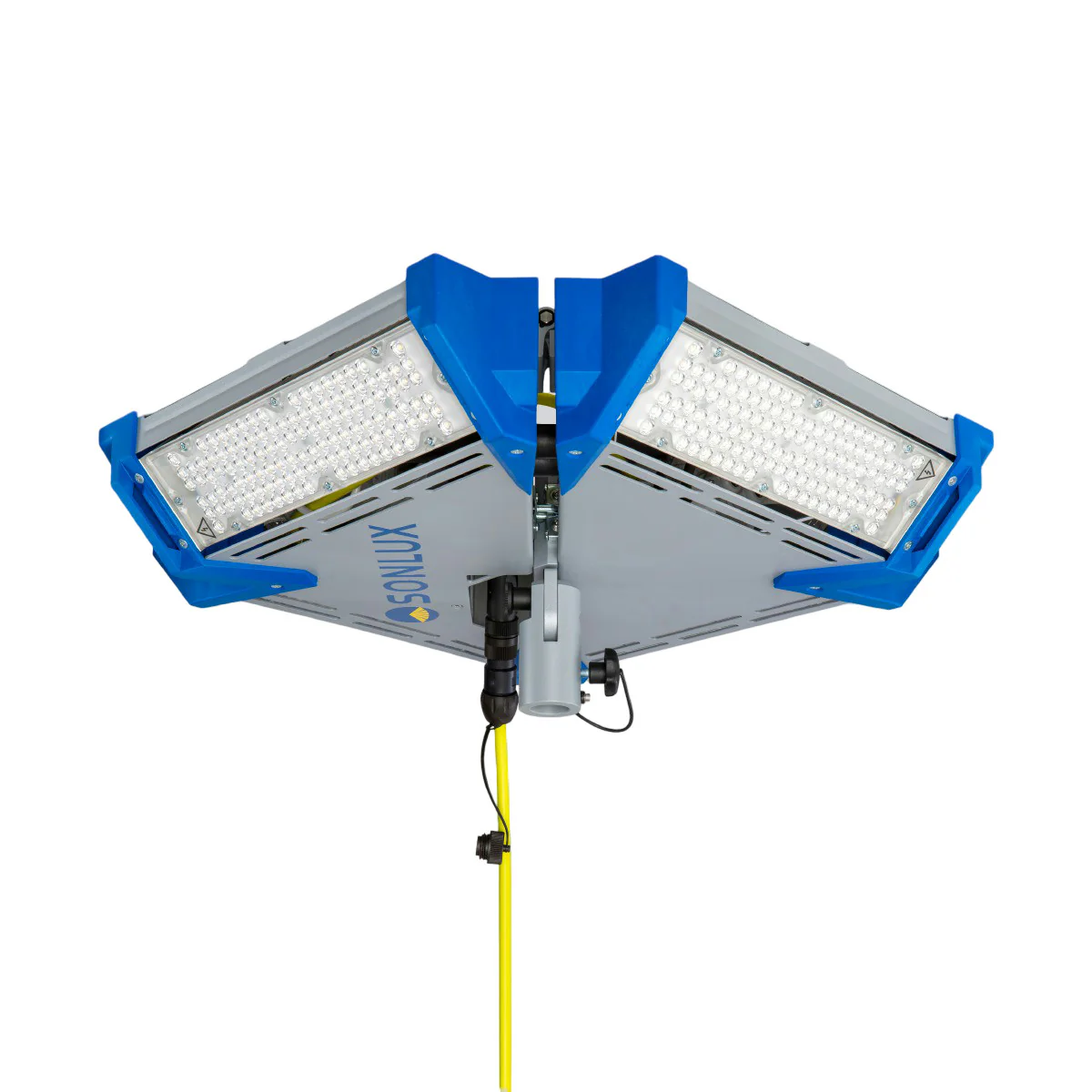

SONLUX POWERCASE M (80M03001-0006) – robust large-area LED luminaire

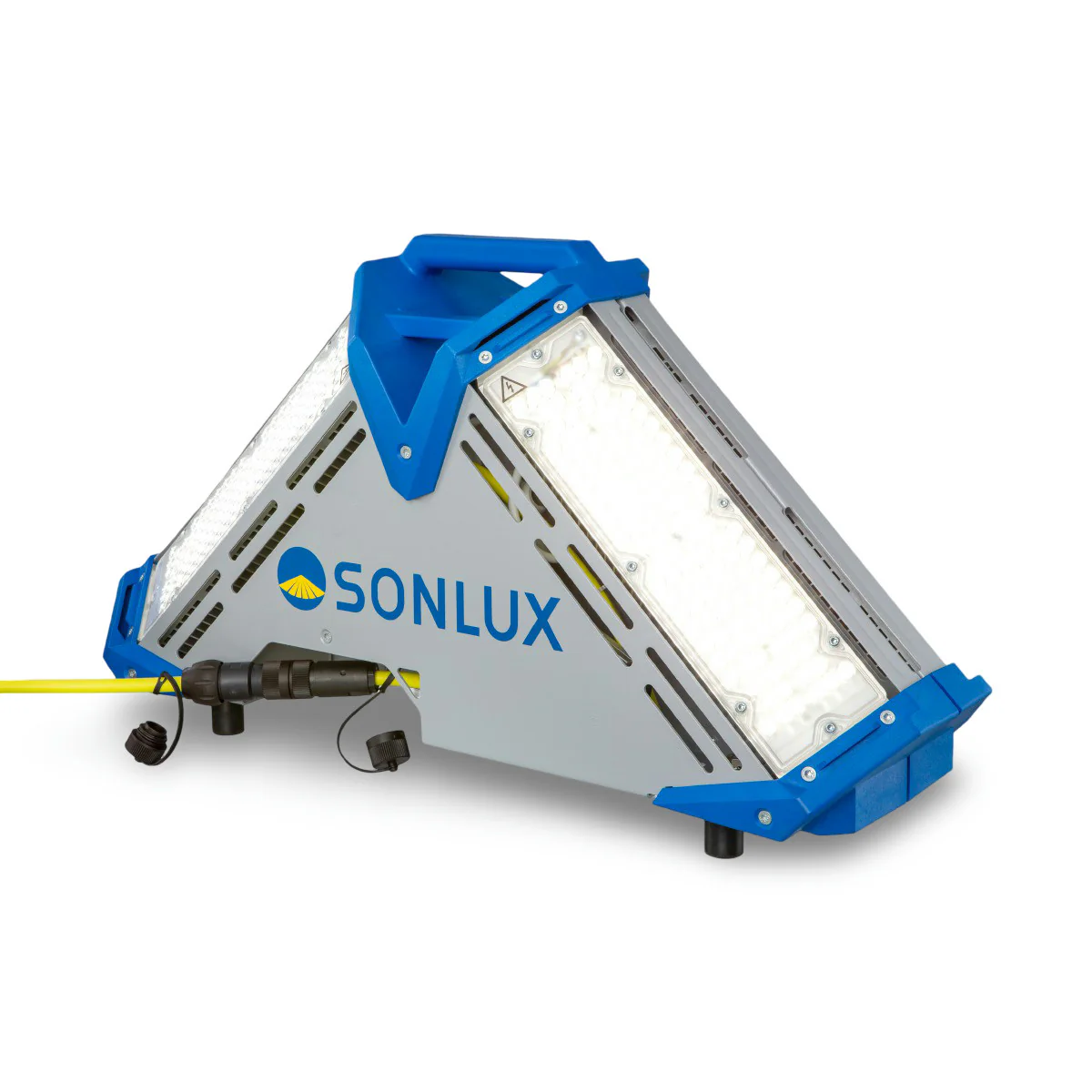

The SONLUX POWERCASE M (80M03001-0006) is a powerful and reliable large-area lighting solution. Designed as a foldable luminaire with a strong aluminium housing and protected corners, it is built to withstand tough everyday work conditions. This luminaire provides even, daylight-quality illumination for extended operational zones where excellent visibility matters. With a design that supports floor, tripod, or suspension mounting, POWERCASE M adapts easily to dynamic site requirements such as construction, industrial maintenance, rescue missions, and event setups.

At the core of the POWERCASE M is a collection of high-efficiency LED light sources paired with clear PC lens optics. These components deliver controlled light distribution across a wide field. The result is a broad, uniform beam that reduces harsh shadows, supports orientation on large sites, and enhances safety for personnel and equipment. The luminaire’s compact case design also makes handling, transport, and temporary installation intuitive and fast.

Main benefits

• High illumination output: robust light field for large areas with minimized dark zones.
• Neutral daylight colour: 5000 K colour temperature supports visual clarity for work and inspections.
• Efficient wide distribution: optics designed for very wide beam coverage.
• Durable build: powder-coated aluminium body with impact-resistant corner caps.

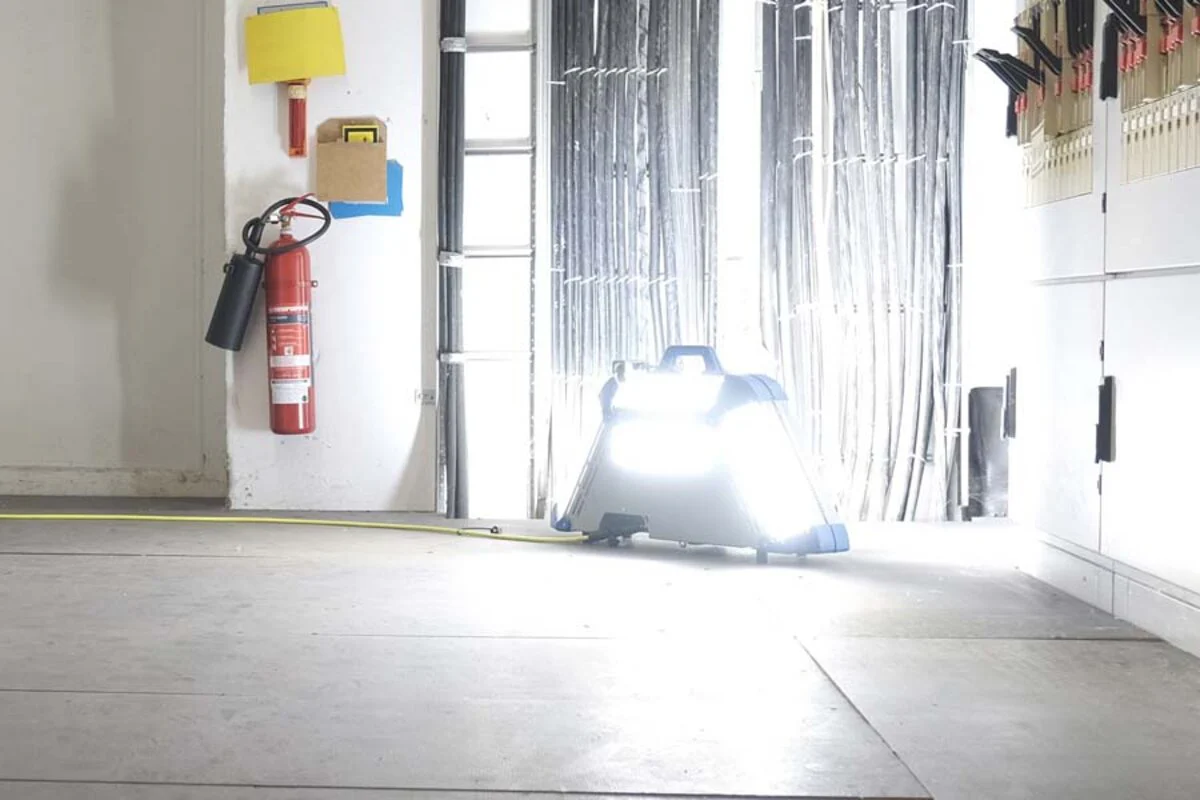

• Flexible mounting: use on the floor, with tripods, or suspended from above.
• Transport-ready: compact foldable shape with included carrying protection for the supply cable.

Mounting and usage flexibility

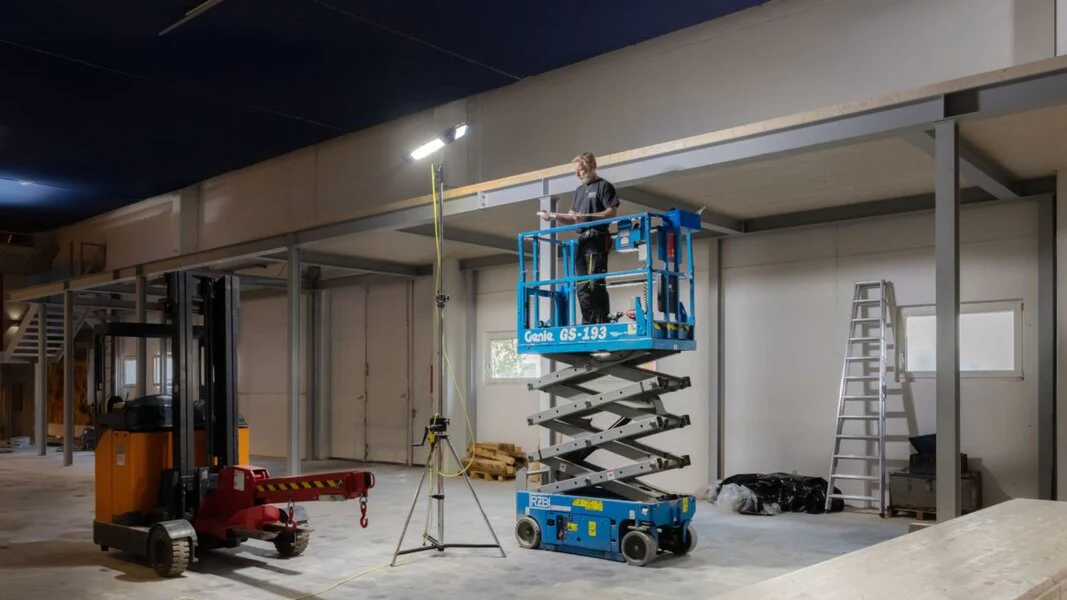

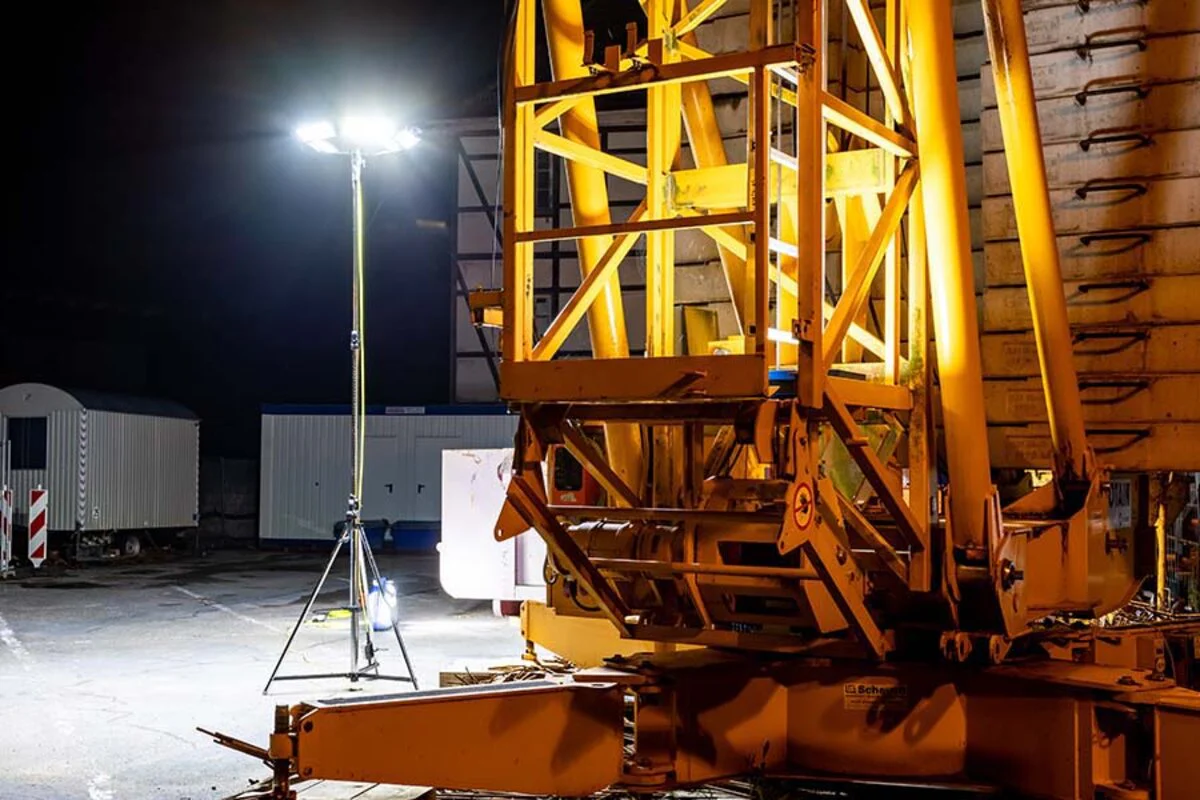

POWERCASE M supports versatile placement scenarios. When used on a tripod with the optional spigot adapter, the luminaire can be positioned vertically or at inclined angles for targeted coverage. Its suspension-readiness allows installation in spaces with limited floor access. Whether folded for transport or quickly unfolded to begin work, the design focuses on convenience and durability.

The included spigot mounting adapter for 30 mm tripods (DIN 14640) accepts straight mounting or inclined setups at 30°, 60°, or 90°. This gives you freedom to shape the light distribution according to location needs. The strong PUR supply cable is equipped to handle mechanical stress on busy sites, and the plug protection sustains performance in demanding conditions.

Performance and light quality

Delivering a rated luminous flux of 59,000 lumens and a system efficiency of 157 lm/W at 376 W power, this luminaire balances high output with energy efficiency suitable for professional deployment. A CRI of 80 ensures good colour recognition necessary for technical inspections, logistics tasks, and detailed visual work. The wide beam angles (155° horizontal, 159° vertical) maximize useful illumination and minimize hotspots at the edges of the light field.

Key specification snapshot

Dimensions (L × W × H)	695 × 705 × 125 mm
Weight	13.2 kg
Light source	LED
Colour temperature	5000 K
Rated luminous flux	59,000 lm
System power	376 W
Beam angle	155° / 159°
CRI	80
Protection rating	IP65
Impact resistance	IK08

Included in delivery

• SONLUX POWERCASE M luminaire (blue housing)
• Spigot adapter for 30 mm mounting (DIN 14640)
• Mounting options: straight or angled (30°, 60°, 90°)
• 10 m robust PUR supply cable (H07BQ-F, 3 × 1.5 mm²) with Type E+F plug

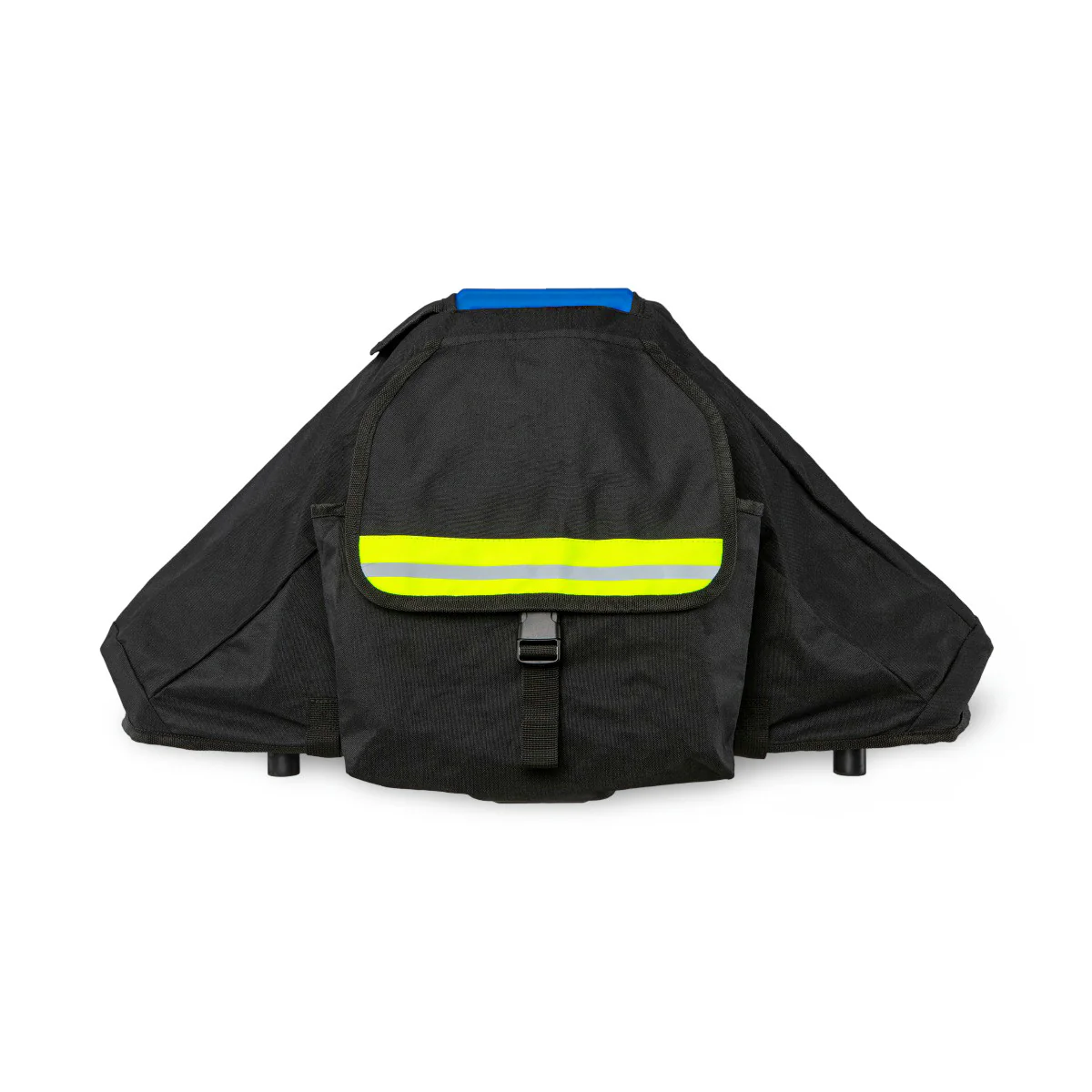

• Protective cover for supply cable during transport

Typical professional applications

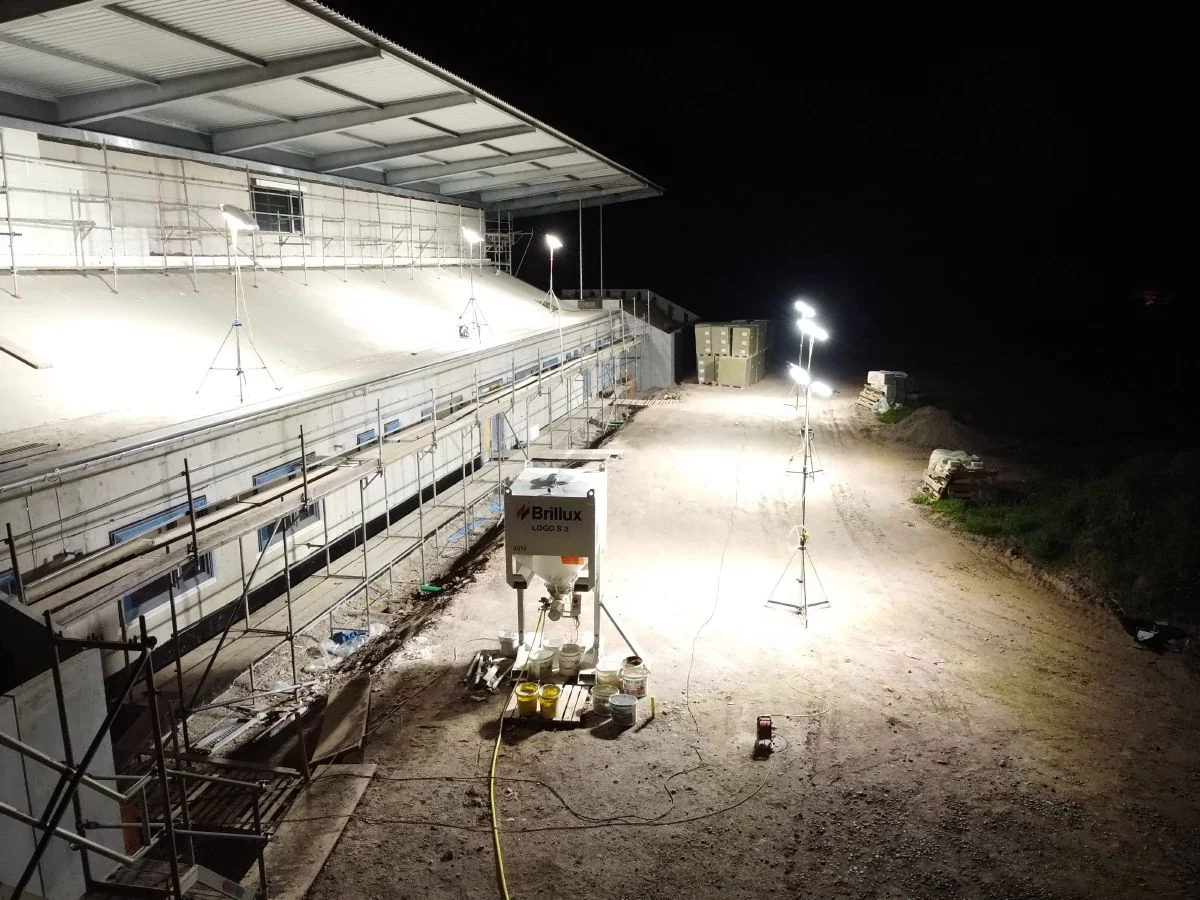

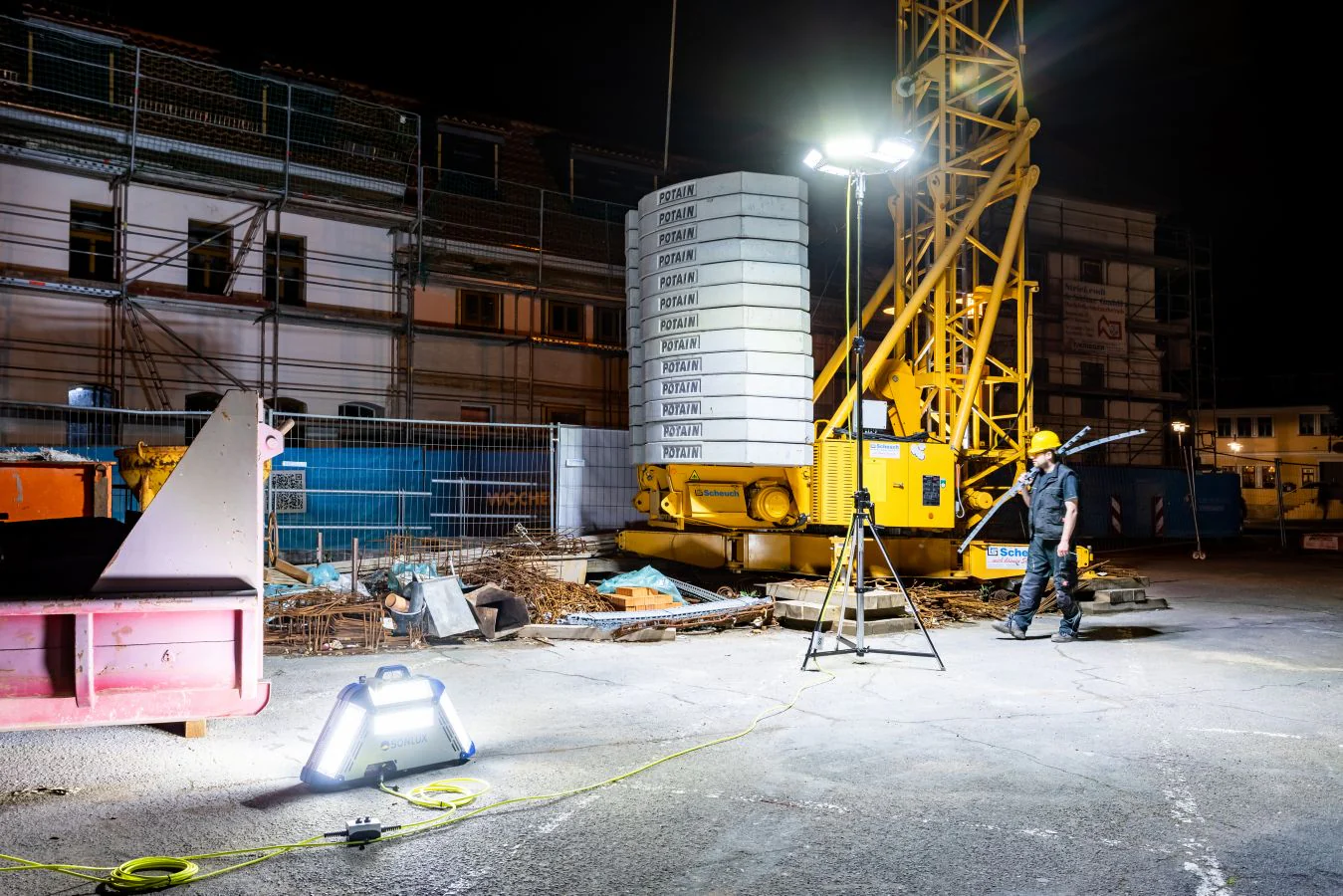

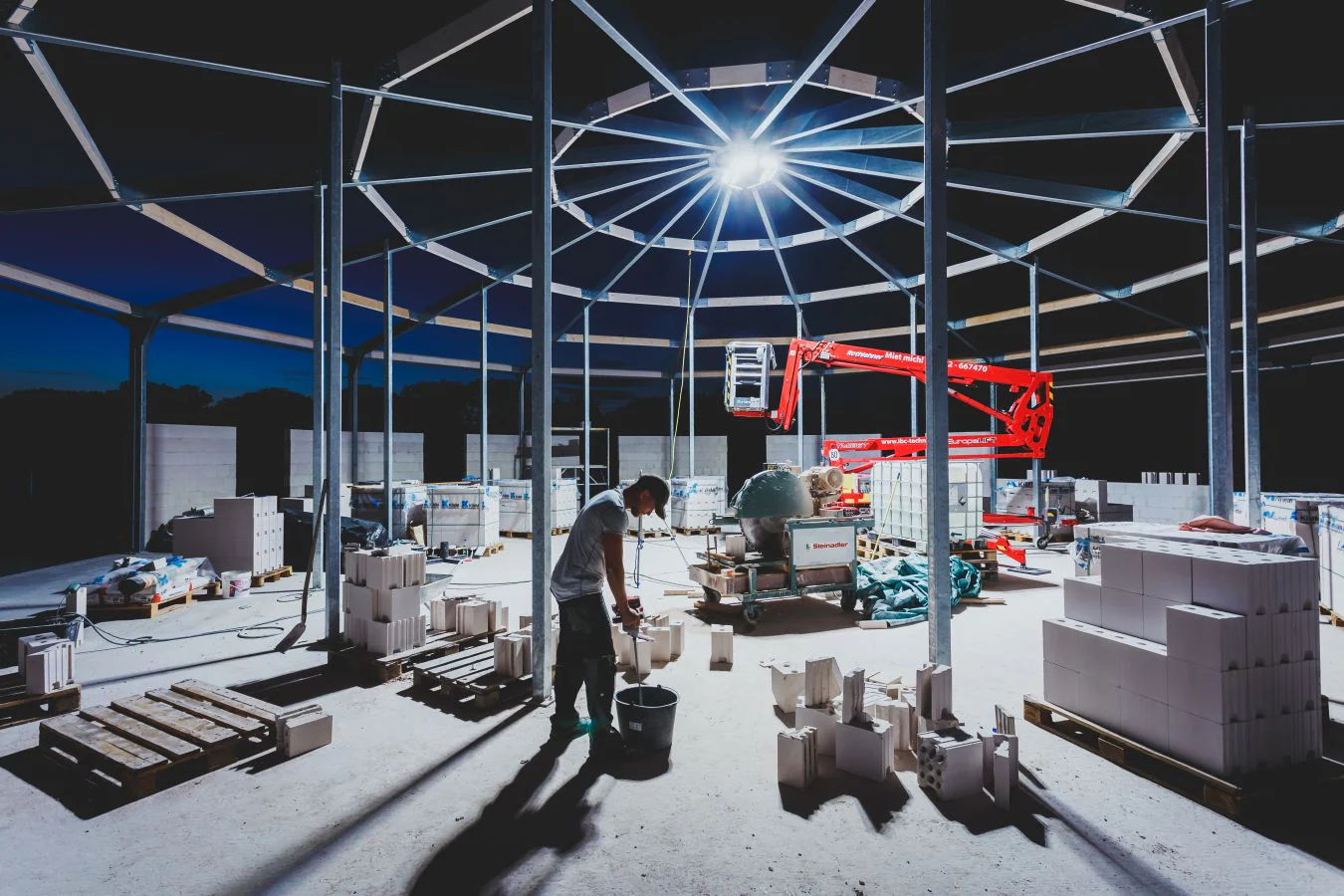

The POWERCASE M is ideal for job sites where large-area illumination is a requirement, not an option. In construction and civil engineering, its broad beam supports ground crew movement and equipment operations. In rescue and emergency work, rapid deployment and consistent light quality help teams maintain safety and situational awareness. Industrial maintenance operations benefit from neutral daylight-like colour that reveals details clearly, while event crews can use the luminaire for setup, crowd control zones, or temporary safety lighting during evening hours.

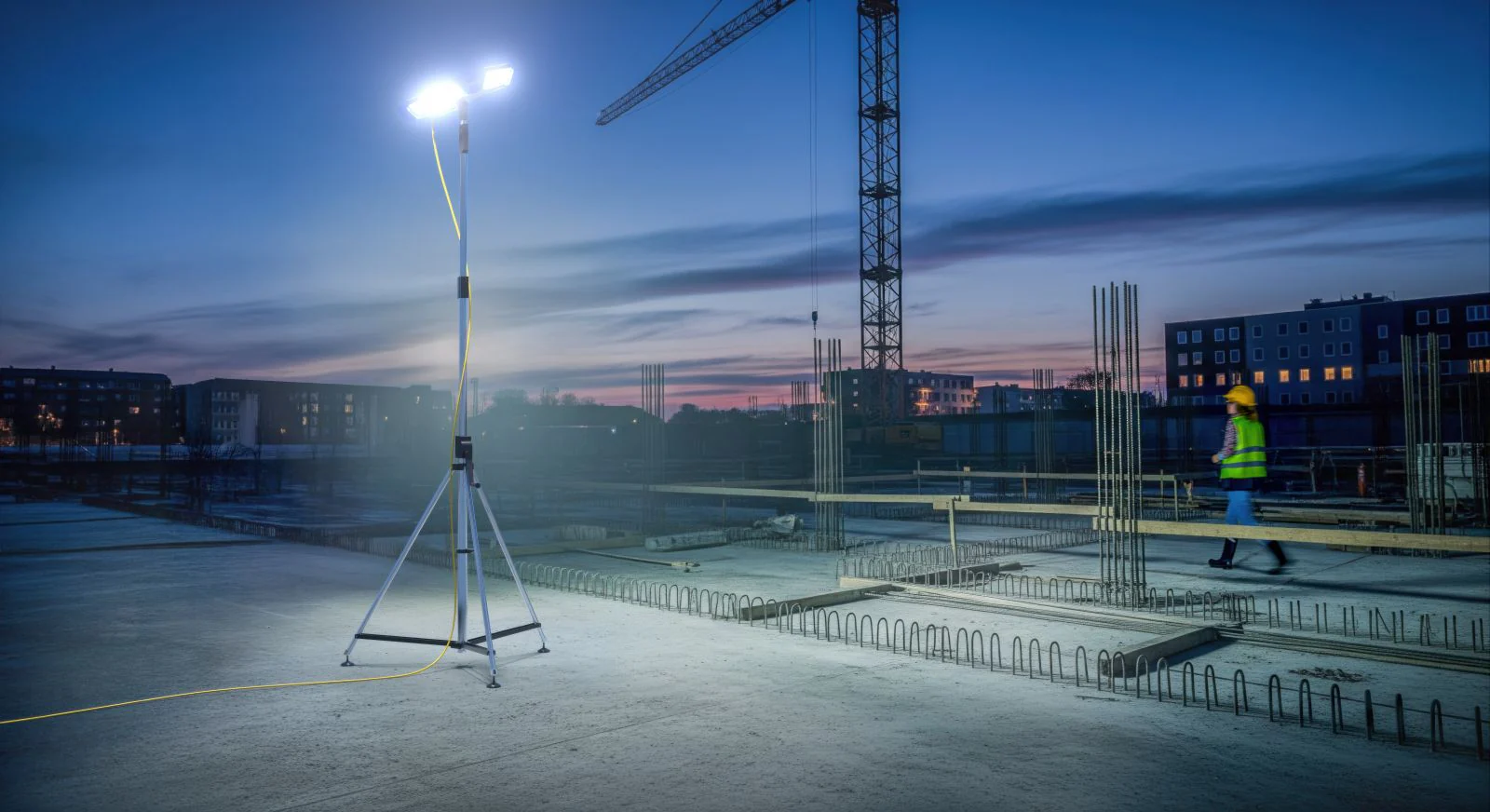

• Construction and civil engineering work areas

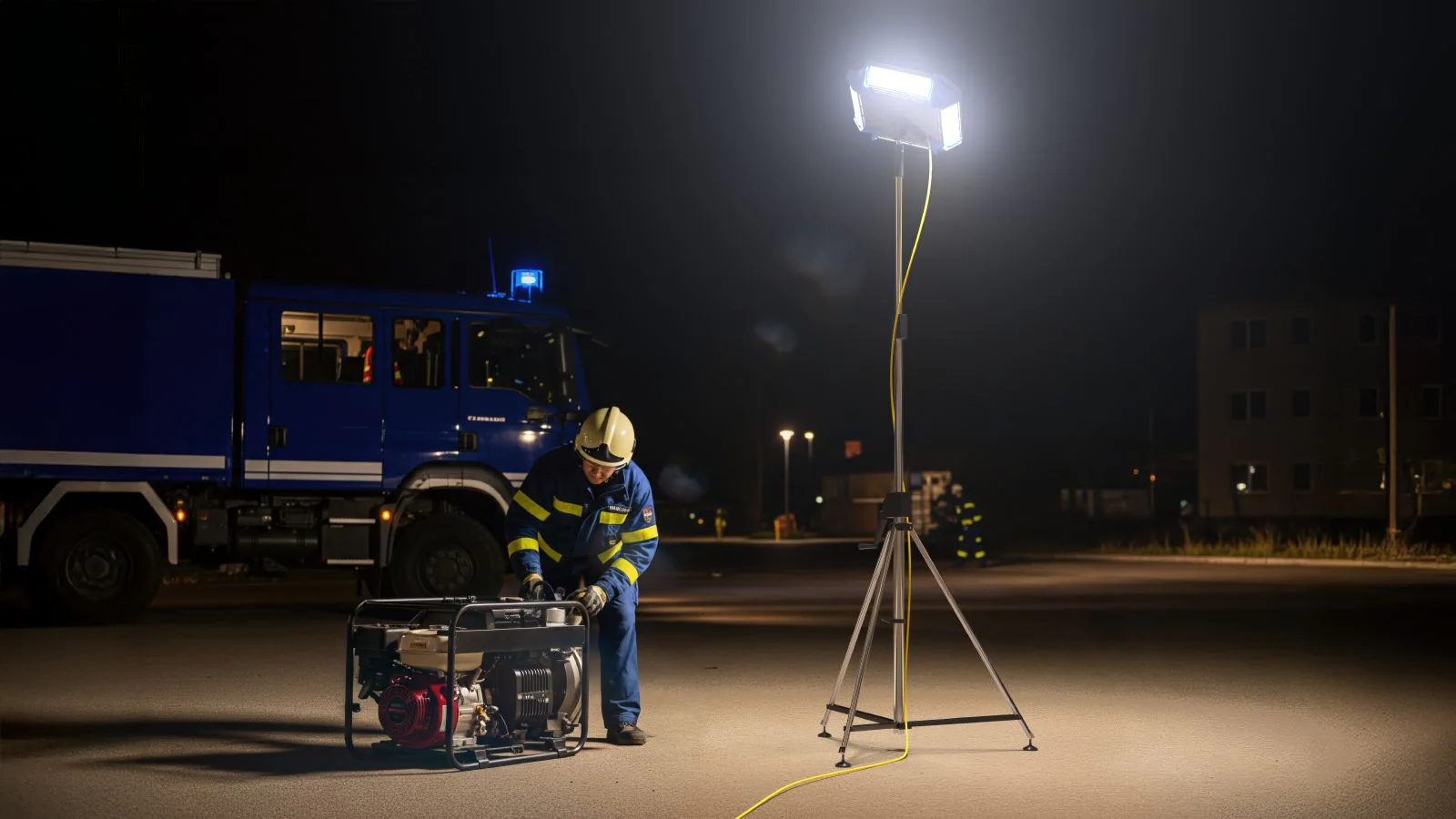

• Rescue scenes and emergency response zones
• Crime scene lighting and security tasks
• Industrial shutdowns, repairs, and maintenance
• Public events and temporary operational lighting

SONLUX POWERCASE M (80M03001-0006) stands out as a practical and powerful tool for professionals who demand reliable, wide-field illumination in environments where conditions change and performance cannot be compromised.

NOTE: The product includes only the lamp. Masts (tripods) and any additional accessories are sold separately and can be selected as optional accessories.
