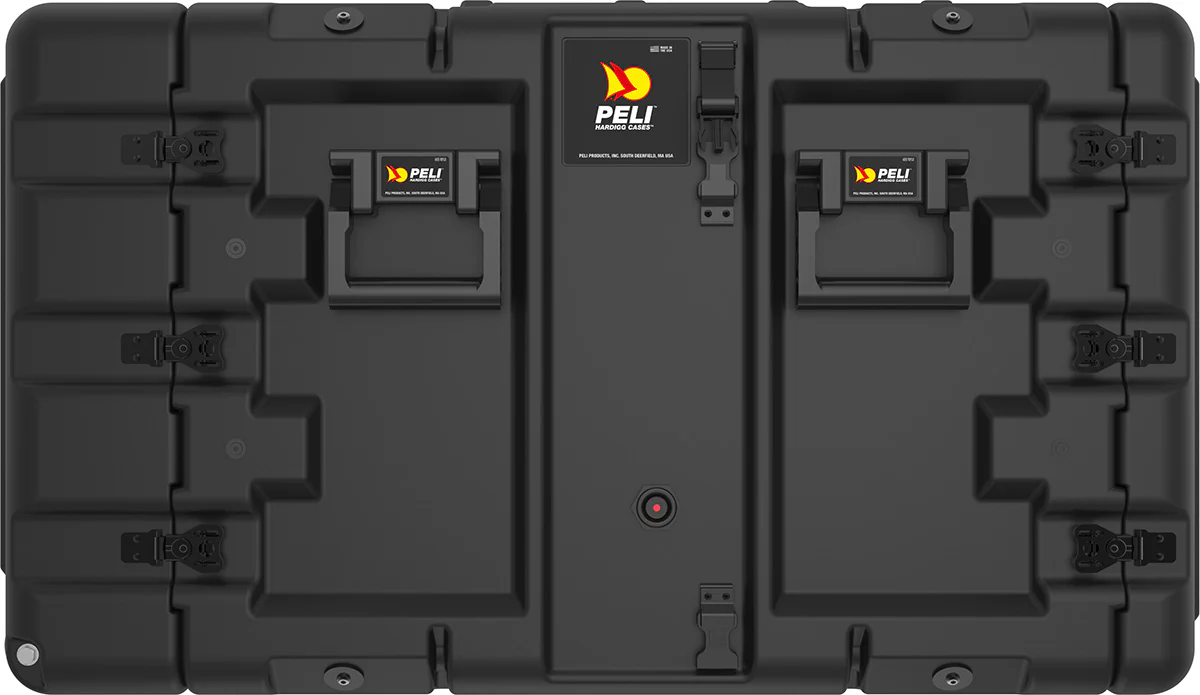

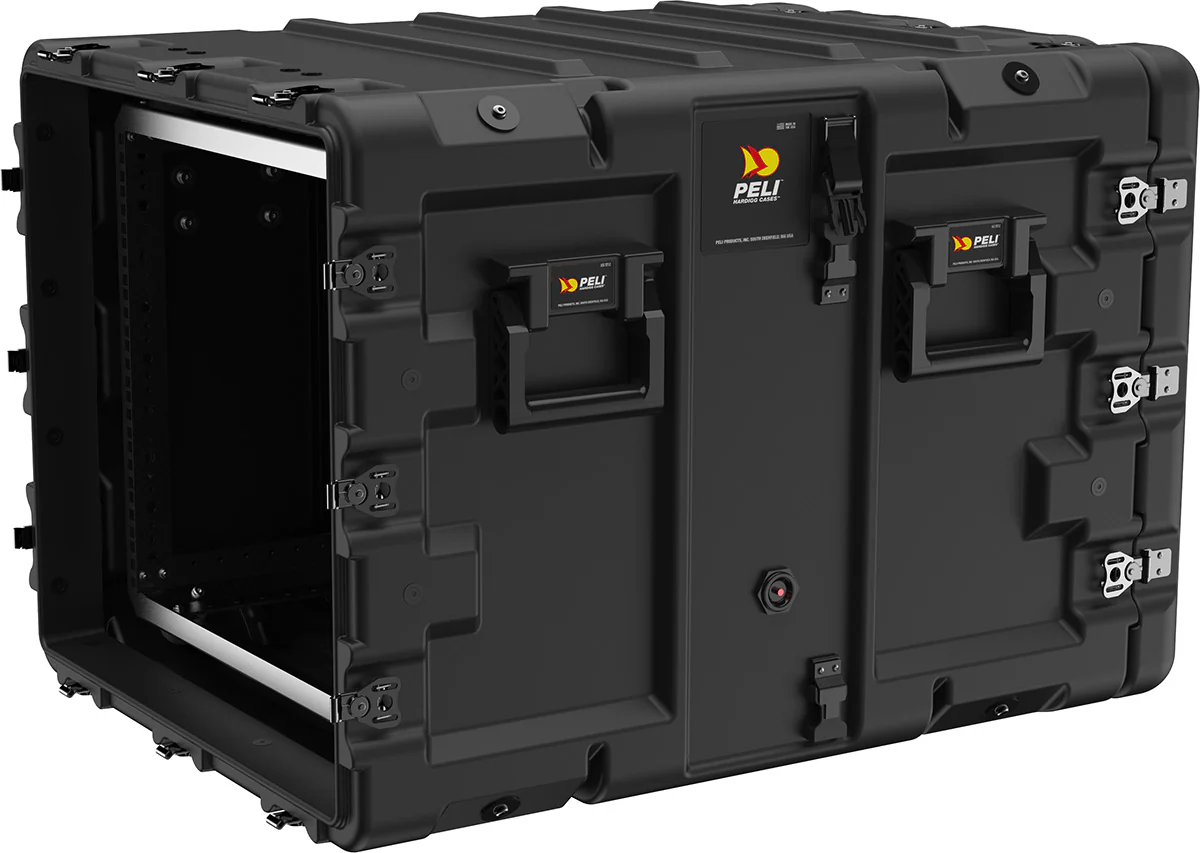

Case Rack 9U Peli SUPER-V Server Box

When your servers, amplifiers, or broadcast gear travel to the field, they face risks no standard rack cabinet can handle — rain on the loading dock, the jolt of a cargo ramp, the vibration of a long-haul truck. The Peli SUPER V Rack Case 9U is built for exactly these moments: a rotomolded polyethylene shell sealed with a silicone o-ring and a pressure-equalising valve keeps a full 9U of rack-mounted equipment dry, dust-free, and shock-protected wherever the job takes you.

Rotomolded Shell, Stainless Steel Hardware

The body is one seamless rotomolded polyethylene piece — no seams to split or bonds to delaminate under repeated impact. Non-reflective black stainless steel hardware (black-oxide / RoHS nickel black) resists corrosion on coastal deployments or in humid broadcast environments. Stackable interlocking latches let you safely stack multiple cases on a pallet without risking collapse — a critical advantage when managing a full touring kit or coordinating a data-centre migration.

A 9U Interior Engineered for the Field

Inside, a clear-coated steel frame — 31.1 cm tall, 61 cm deep — holds a square-hole mounting panel fitted with M6 metric cage nuts compatible with virtually any server, router, audio processor, or broadcast rack unit. The 24-inch frame depth accommodates deep 2-post and 4-post equipment without adapters. A lid hanger keeps front and rear covers out of the way while you patch cables on-site; separate internal front (5.6 cm) and rear (13.2 cm) lid compartments store power cables, adapters, or documentation.

Who Uses the Peli SUPER V 9U?

Live-sound engineers hauling DSP racks to festival stages. IT teams migrating servers between data centres. Broadcast crews deploying in remote or hostile locations. Defence and government users who need field-proven protection. Loaded near its 45–77 kg capacity (7U–14U models), the integrated wheels and corner handles keep the case manageable. At 27.2 kg empty, it stays within two-person lift guidelines for most workplace safety regulations.

Technical Specifications

• External dimensions: 38.50″ × 28.30″ × 18.40″ (97.8 × 71.9 × 46.7 cm)
• Stackable interlocking latches for safe stacking
• Maximum load — 7U–14U models: 45–77 kg per case
• Maximum load — 3U–5U models: 36–45 kg per case
• REACH and RoHS compliant
• Front cover depth: 6.4 cm | Rear cover depth: 13.3 cm
• M6 metric cage nuts — universal mounting flexibility
• Gasket and pressure relief valve — watertight seal, pressure equalisation for air transport
• Square-hole mounting frame for universal equipment mounting
• Built-in wheels and corner handles for easier transport
• Lid hanger included
• Non-reflective black hardware
• Convenient plastic handles
• Available in 3U, 4U, 5U, 7U, and 9U configurations
• Model: SUPER V-SERIES 9U — 2116-02/29/05W
• Body: RotoMolded Polyethylene
• O-ring: Silicone Sponge
• Purge body: Aluminium
• Hardware: Stainless Steel (Black Oxide) / RoHS Nickel Black
• Frame: Steel (Clear Coated)
• Frame height: 12.25″ (31.1 cm)
• Frame depth: 24.00″ (61 cm)
• Internal front lid depth: 2.20″ (5.6 cm)
• Internal rear lid depth: 5.20″ (13.2 cm)
• Weight: 60.00 lbs (27.2 kg)
• Custom modifications available on request
